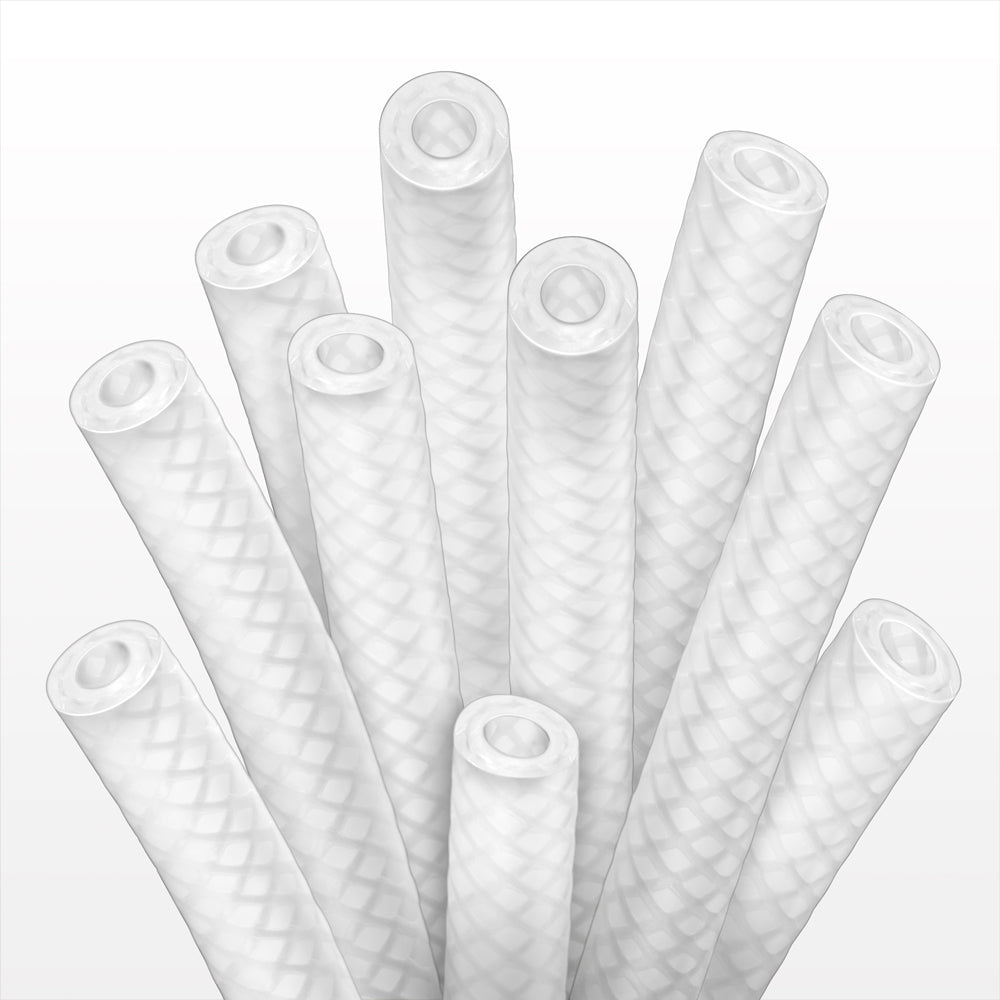

Braided C-Flex 082 Tubing - 60A Durometer; 3/4 inch ID x 1 inch OD (0.75 inch x 1 inch, 19.05 mm x 25.4 mm) x 15 ft coil (4.572 m) - T2236
Braided C-Flex 082 is a high-performance, braid-reinforced tubing engineered for high-pressure fluid processing in pharmaceutical,...
Price :
Regular price
$266.95
Regular price
$266.95
Braided C-Flex 082 is a high-performance, braid-reinforced tubing engineered for high-pressure fluid processing in pharmaceutical, biopharmaceutical, and biotech industries. Made with C-Flex 082 resin, it offers good chemical resistance and durability for demanding bioprocessing environments.
| Technical Detail | 60A Durometer; 3/4 inch ID x 1 inch OD (0.75 inch x 1 inch, 19.05 mm x 25.4 mm) x 15 ft coil (4.572 m) |
| Materials | TPE |
| CAD Model Available | No |
| Packaging | 15 ft coil (4.572 m) |
| Manufacturing Environment Classification | Controlled but not formally classified |
| Manufacturing Aids - Mold Release - Lubricant used | No |
| Colorant in Part | No |
| Regrind Used to Manufacture This Part | No |
| Hazardous Goods | No |
| Product Shelf Life Non-Irradiation (months) | 60 |
| Animal Derived Ingredients (BSE/TSE) | Animal Derived Component Free (ADCF) |
| California Prop. 65 | NO SUBSTANCES on the California Proposition 65 list have been knowingly or intentionally added |
| California Prop. 65 List Date | 12/25/2023 11:33:01 am |
| Conflict Minerals | Not known to contain tantalum, tin, tungsten or gold. |
| EU MDR 10.4.1 (CMR/ED) | Information Not Available |
| European Pharmacopoeia (EP) 3.1.X | Product out of scope |
| Human Derived Ingredients | Information Not Available |
| Latex | Does NOT intentionally contain natural latex |
| Latex in Packaging | Does NOT intentionally contain natural latex |
| Medicinal Substances | Information Not Available |
| Nanomaterials | Information Not Available |
| RoHS3 (2015/863) | Conforms to requirements of RoHS 2015/863 (RoHS3) |
| EtO Compatible | Yes |
| Gamma Compatible | Yes |
| Biocompatibility tested ISO 10993 | Yes |
| ISO 10993-X Claim Based on | Finished Component |
| USP Biocompatibility 87 | Finished component passes USP<87> |
| USP Biocompatibility 88 | Passes USP <88> 70C |
| USP Biocompatibility Claim Based On | Finished Component |
| Residual Solvents: Tested via ICH Q3C Standard | No ICH Q3C Testing Performed |
| Elemental Impurities: Tested via ICH Q3D Standard | Contains NO ICH Q3D Class 1, 2, 2B or 3 Elemental Impurities |
| Protein Absorption Data Available | No |
| Extractables Testing Claims | Modified BPOG |
| Bioburden USP 61 62 | No bioburden information available |
| Tested via USP 661.1 | Yes |
