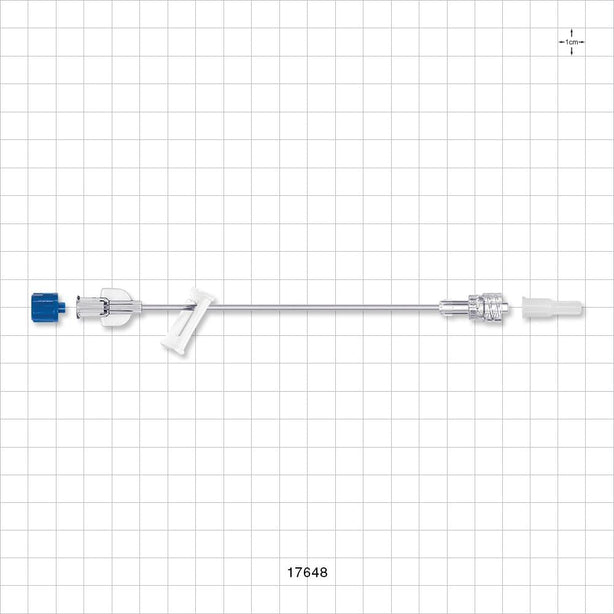

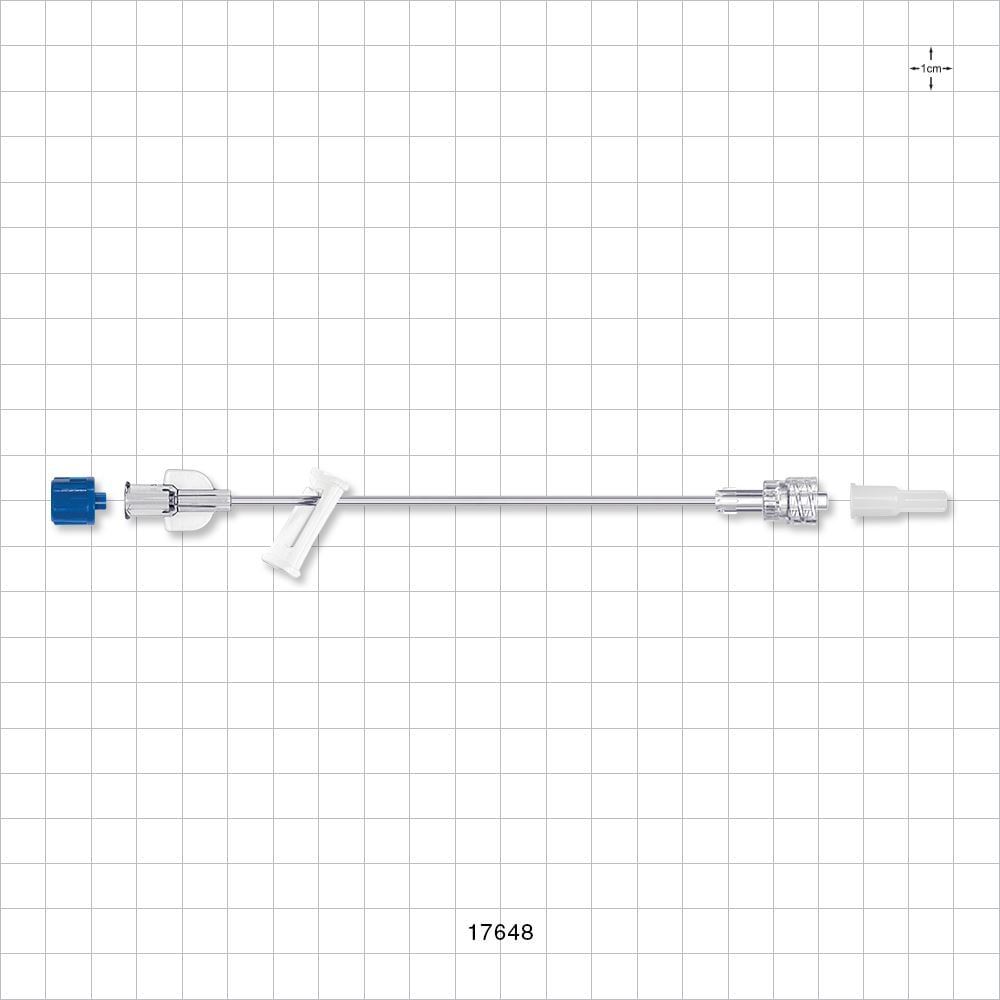

Extension Line, Female Luer Lock to Male Luer with Spin Lock, Slide Clamp and Non-Vented Caps - 0.047 inch ID x 0.088 inch OD (1.2 mm x 2.2 mm); 6 inch (152.4 mm) - 17648
Qosina offers an extensive line of pre-assembled extension lines available in a variety of configurations...
Price :
Regular price
$8.95
Regular price
$8.95
Qosina offers an extensive line of pre-assembled extension lines available in a variety of configurations that are in stock and ready for immediate delivery. Qosina part # 17648 is a mini-bore extension line which features a female luer lock on one tube end and a male luer lock connector on the other. Equipped with a slide clamp and non-vented caps, this extension line has an overall length of 6 inches and provides flexibility while helping to simplify the design and prototyping phases of your project. Our sales team can assist you in building a custom configuration to meet your project requirements.
| Technical Detail | 0.047 inch ID x 0.088 inch OD (1.2 mm x 2.2 mm); 6 inch (152.4 mm) |
| Materials | PP HDPE MABS HDPE PVC COPE |
| CAD Model Available | No |
| Manufacturing Environment Classification | ISO Class 8 / 100,000 / Grade D |
| Manufacturing Aids - Mold Release - Lubricant used | No |
| Colorant in Part | No |
| Regrind Used to Manufacture This Part | No |
| Hazardous Goods | No |
| Product Shelf Life Non-Irradiation (months) | No shelf life indicated by the supplier |
| Animal Derived Ingredients (BSE/TSE) | Animal Derived Component Free (ADCF) |
| California Prop. 65 | NO Substances on the California Proposition 65 list have been knowingly or intentionally added |
| California Prop. 65 List Date | 12/29/2023 12:00:00 am |
| Conflict Minerals | Not known to contain tantalum, tin, tungsten or gold. |
| EU MDR 10.4.1 (CMR/ED) | No Substance(s) Present Above Threshold |
| EU MDR 10.4.1 (CMR/ED) Substance List | Annex VI to CLP_ATP18 - 01 December 2023 |
| European Pharmacopoeia (EP) 3.1.X | Information Not Available |
| Human Derived Ingredients | Does NOT intentionally contain human derived ingredients |
| Latex | Does NOT intentionally contain natural latex |
| Latex in Packaging | Does NOT intentionally contain natural latex |
| Medicinal Substances | Does NOT intentionally contain medicinal substances |
| Nanomaterials | Does NOT intentionally contain nanomaterials |
| PFAS | Does NOT intentionally contain PFAS |
| PFAS in Packaging | Information Not Available |
| Pyrogens | Not Tested for Pyrogens |
| REACH SVHC | No Substance(s) Present Above Threshold |
| REACH SVHC Candidate List | 2024 June 27 (241 Substances) |
| RoHS3 (2015/863) | Conforms to requirements of RoHS 2015/863 (RoHS3) |
| Biocompatibility tested ISO 10993 | No |
| USP Biocompatibility 87 | Information Not Available |
| USP Biocompatibility 88 | Information Not Available |
| Residual Solvents: Tested via ICH Q3C Standard | No ICH Q3C Testing Performed |
| Elemental Impurities: Tested via ICH Q3D Standard | No ICH Q3D Testing Performed |
| Protein Absorption Data Available | No |
| Extractables Testing Claims | No Extractables Testing Performed |
| Visible-Subvisible Particulate Claim | Information Not Available |
| Bioburden USP 61 62 | No bioburden information available |
| Tested via USP 661.1 | No |
| Integrity Tested? | No |
