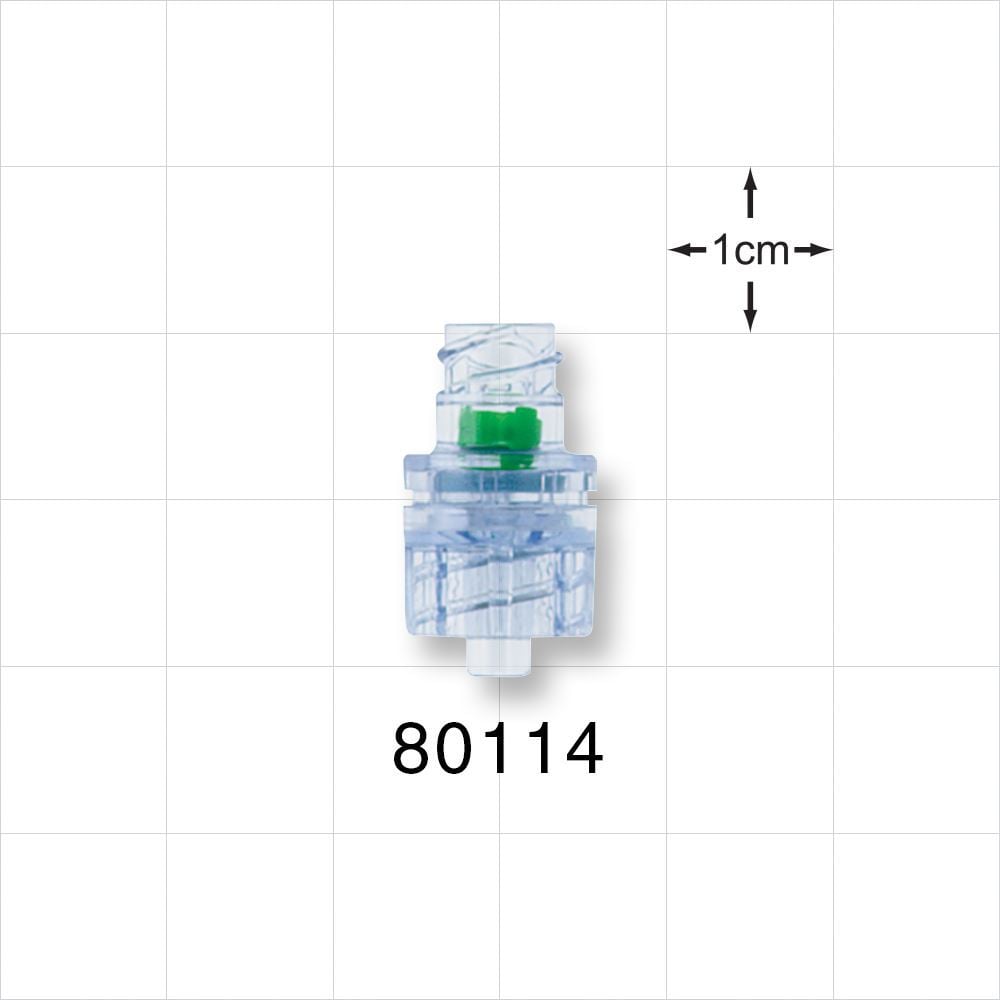

Qosina offers a variety of valves that are in stock and ready for immediate delivery. Qosina part # 80114 is a bidirectional valve that features a green silicone actuator. Once activated by the stem of a male luer lock connection, this valve allows the free flow of air or fluid. Made from ABS, PC and silicone, it is equipped with a female luer lock inlet and a male luer lock outlet. Qosina offers a large selection of valves and valve accessories to meet your project requirements.
| Materials | PC ABS Colorant Silicone |
| CAD Model Available | No |
| Manufacturing Environment Classification | ISO Class 8 / 100,000 / Grade D |
| Colorant in Part | Yes |
| Regrind Used to Manufacture This Part | No |
| Hazardous Goods | No |
| Product Shelf Life Non-Irradiation (months) | No shelf life indicated by the supplier |
| Animal Derived Ingredients (BSE/TSE) | Animal Derived Component Free (ADCF) |
| California Prop. 65 | SOME SUBSTANCES on the California Proposition 65 list have been knowingly or intentionally added |
| California Prop. 65 List Date | 1/3/2025 12:00:00 am |
| EU MDR 10.4.1 (CMR/ED) | No Substance(s) Present Above Threshold |
| EU MDR 10.4.1 (CMR/ED) Substance List | Annex VI to CLP_ATP22 - 01 May 2026 |
| European Pharmacopoeia (EP) 3.1.X | Information Not Available |
| Latex | Does NOT intentionally contain natural latex |
| Latex in Packaging | Does NOT intentionally contain natural latex |
| Nanomaterials | Does NOT intentionally contain nanomaterials |
| PFAS | Does NOT intentionally contain PFAS |
| PFAS in Packaging | Information Not Available |
| REACH SVHC | Substance(s) Present Above Threshold |
| REACH SVHC Candidate List | 2025 January 21 (247 Substances) |
| RoHS3 (2015/863) | Conforms to requirements of RoHS 2015/863 (RoHS3) |
| EtO Compatible | Yes |
| Gamma Compatible | Yes |
| Steam Compatible | Information Not Available |
| X-Ray Compatible | Information Not Available |
| Biocompatibility tested ISO 10993 | Yes |
| ISO 10993-X Claim Based on | Finished Component |
| Residual Solvents: Tested via ICH Q3C Standard | No ICH Q3C Testing Performed |
| Elemental Impurities: Tested via ICH Q3D Standard | No ICH Q3D Testing Performed |
| Protein Absorption Data Available | No |
| Extractables Testing Claims | No Extractables Testing Performed |
| Visible-Subvisible Particulate Claim | Information Not Available |
| Bioburden USP 61 62 | No bioburden information available |
| Tested via USP 661.1 | No |
| Integrity Tested? | No |
