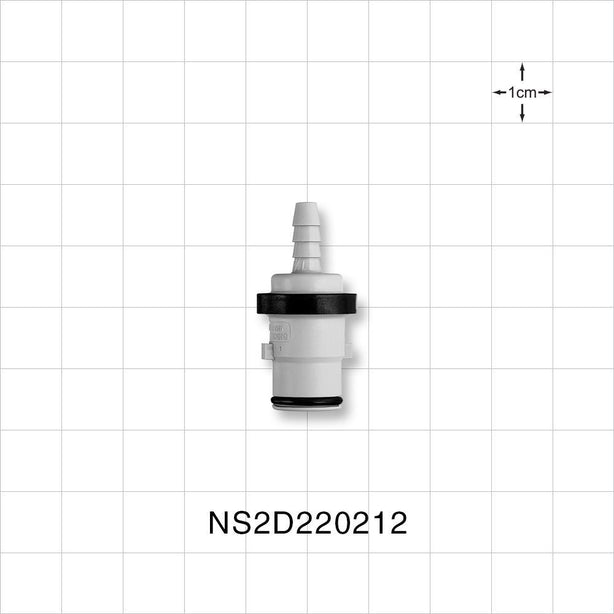

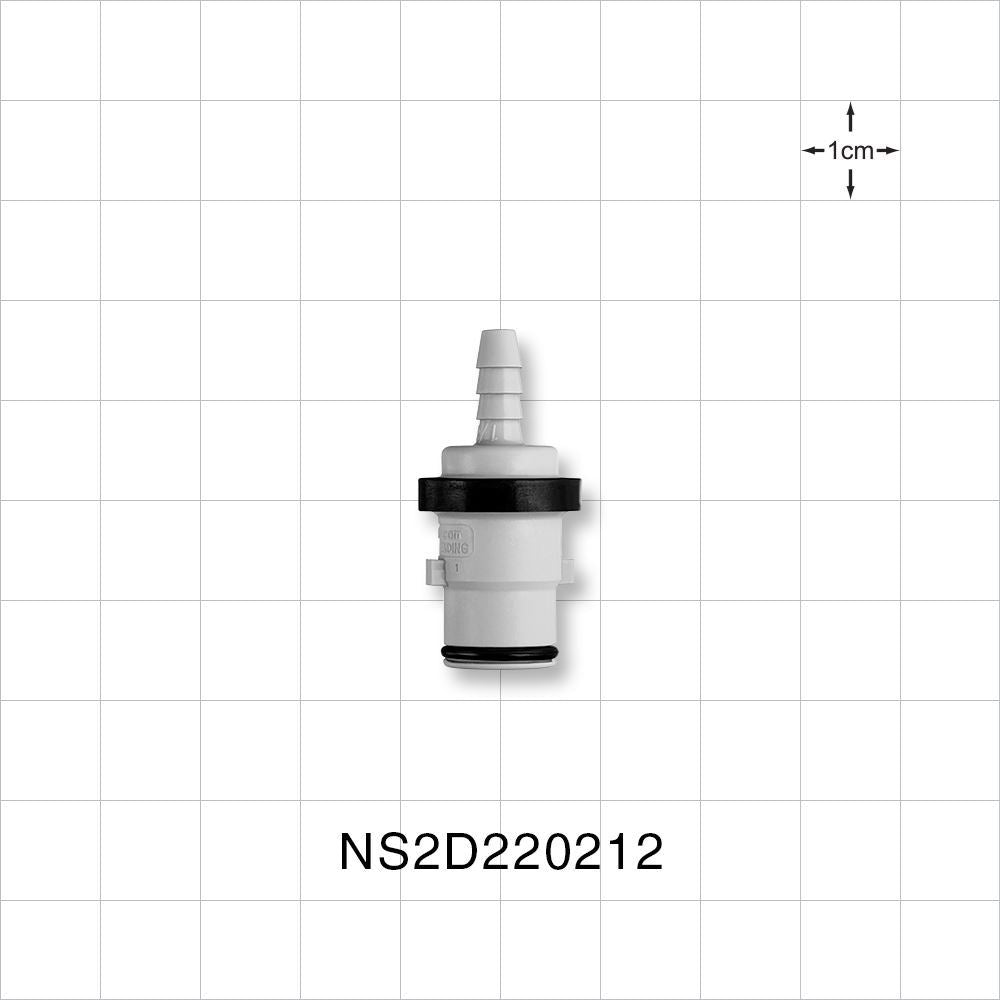

NS212 Connector, Insert, Valved, Barbed - Fits 1/8 inch ID Tubing (0.125 inch, 3.18 mm) - NS2D220212
This product has a twist-to-connect coupling with an integrated locking mechanism and double-sided non-spill shutoff...
Price :
Regular price
$12.95
Regular price
$12.95
This product has a twist-to-connect coupling with an integrated locking mechanism and double-sided non-spill shutoff valves, which provides fast, safe and leak free fluid connections. The compact design maintains high flow fluid transfer and a vacuum up to 45psi, 3.1bar. While the spillage and air inclusion are approximately <0.025cc per disconnect and 0.009cc per connect.
| Technical Detail | Fits 1/8 inch ID Tubing (0.125 inch, 3.18 mm) |
| Materials | EPDM PP SS PP |
| CAD Model Available | Yes |
| Hazardous Goods | No |
| Conflict Minerals | Not known to contain tantalum, tin, tungsten or gold. |
| European Pharmacopoeia (EP) 3.1.X | Information Not Available |
| RoHS3 (2015/863) | Conforms to requirements of RoHS 2015/863 (RoHS3) |
