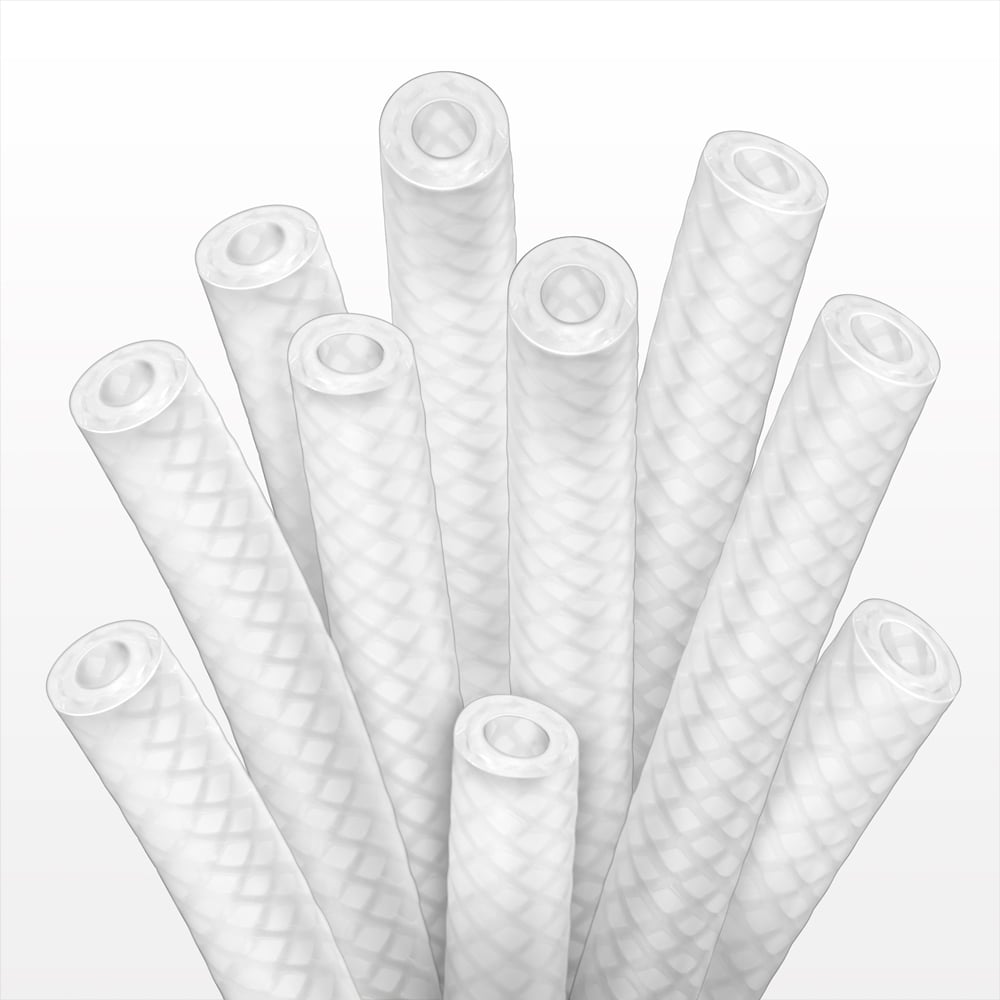

Sani-Tech STHT-R Tubing - 65A Durometer; 1/2 inch ID x 7/8 inch OD (0.5 inch x 0.875 inch, 12.7 mm x 22.23 mm) x 25 ft coil (7.62 m) - T2526
Sani-Tech STHT-R is a braid-reinforced silicone tubing developed for higher pressure fluid transfer processes. Technical...
Price :
Regular price
$974.95
Regular price
$974.95
Sani-Tech STHT-R is a braid-reinforced silicone tubing developed for higher pressure fluid transfer processes.
| Technical Detail | 65A Durometer; 1/2 inch ID x 7/8 inch OD (0.5 inch x 0.875 inch, 12.7 mm x 22.23 mm) x 25 ft coil (7.62 m) |
| Materials | Silicone |
| CAD Model Available | No |
| Packaging | 25 ft coil (7.62 m) |
| Manufacturing Environment Classification | ISO Class 7 / 10,000 / Grade C |
| Manufacturing Aids - Mold Release - Lubricant used | No |
| Colorant in Part | No |
| Regrind Used to Manufacture This Part | No |
| Hazardous Goods | No |
| Product Shelf Life Non-Irradiation (months) | 60 |
| Animal Derived Ingredients (BSE/TSE) | Conforms with EMA/410/01 rev. 3 |
| California Prop. 65 | Information Not Available |
| Conflict Minerals | Not known to contain tantalum, tin, tungsten or gold. |
| EU MDR 10.4.1 (CMR/ED) | No Substance(s) Present Above Threshold |
| European Pharmacopoeia (EP) 3.1.X | Pass 3.1.9 Silicone |
| Human Derived Ingredients | Information Not Available |
| Latex | Does NOT intentionally contain natural latex |
| Latex in Packaging | Does NOT intentionally contain natural latex |
| Medicinal Substances | Information Not Available |
| Nanomaterials | Does NOT intentionally contain nanomaterials |
| Pyrogens | Pyrogen free - Tested via USP <85> |
| RoHS3 (2015/863) | Conforms to requirements of RoHS 2015/863 (RoHS3) |
| EtO Compatible | Yes |
| Gamma Compatible | Yes |
| Biocompatibility tested ISO 10993 | No |
| USP Biocompatibility 87 | Finished component passes USP<87> |
| USP Biocompatibility 88 | Passes USP <88>, temperature not stated |
| USP Biocompatibility Claim Based On | Finished Component |
| Residual Solvents: Tested via ICH Q3C Standard | Contains ICH Q3C Class 1 or 2 Residual Solvents |
| Elemental Impurities: Tested via ICH Q3D Standard | Contains ICH Q3D Class 1, 2, 2B or 3 Elemental Impurities |
| Protein Absorption Data Available | No |
| Extractables Testing Claims | Modified BPOG |
| Visible-Subvisible Particulate Claim | USP <788> |
| Bioburden USP 61 62 | No bioburden information available |
| Tested via USP 661.1 | Yes |
