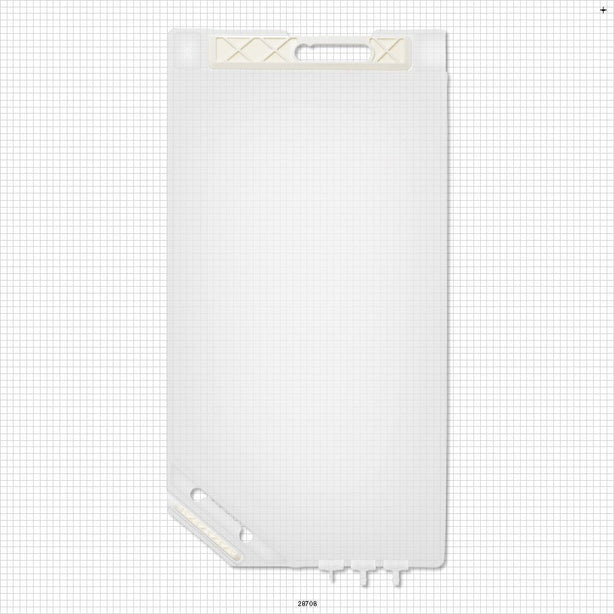

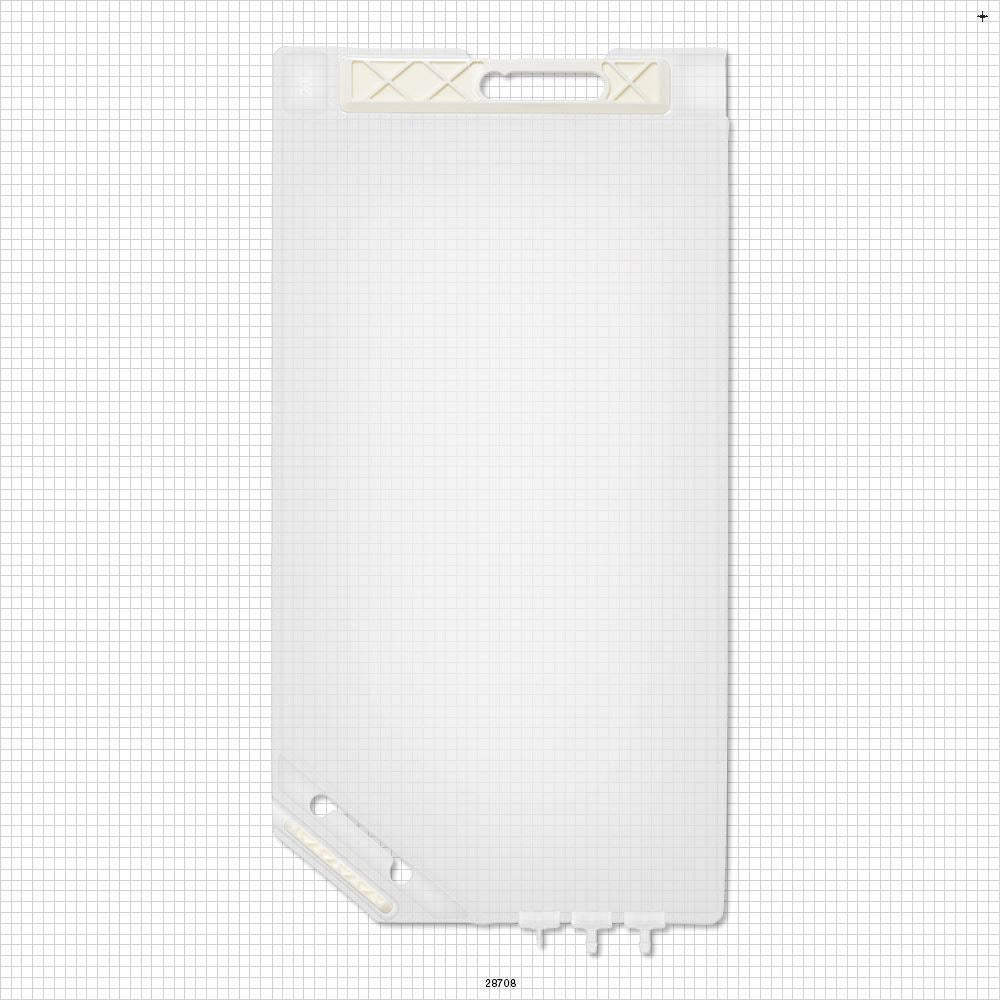

2D Bag Chamber, 3 Ports, Non-Sterile - 20 Liter; 2 Ports Fit 3/8 inch ID Tubing (0.375 inch, 9.53 mm); 1 Port Fits 1/8 inch ID Tubing (0.125 inch, 3.18 mm) - 28708
Qosina part number 28708 is a high-performance fluid storage and transfer bag chamber ideal for...
Price :
Regular price
$113.95
Regular price
$113.95
Qosina part number 28708 is a high-performance fluid storage and transfer bag chamber ideal for upstream and downstream bioprocessing applications. Manufactured with medical-grade Renolit 9101 film, a multilayer film composed of high-purity biocompatible polyethylene (PE) contact layer with internal ethylene vinyl alcohol (EVOH) oxygen barrier, this film provides superior clarity, flexibility, strength, chemical resistance, stability in a temperature range of -45°C to 60°C and an extremely low extractables and leachables profile. It features a TruFLO port design, made of POE, which facilitates optimized edge-seal integrity and superior flow rates. This bag includes reinforced, ergonomic PBT handles.
| Technical Detail | 20 Liter; 2 Ports Fit 3/8 inch ID Tubing (0.375 inch, 9.53 mm); 1 Port Fits 1/8 inch ID Tubing (0.125 inch, 3.18 mm) |
| Materials | PE Polyolefin PBT |
| CAD Model Available | No |
| Manufacturing Environment Classification | ISO Class 7 / 10,000 / Grade C |
| Manufacturing Aids - Mold Release - Lubricant used | No |
| Colorant in Part | No |
| Regrind Used to Manufacture This Part | No |
| Hazardous Goods | No |
| Product Shelf Life Non-Irradiation (months) | 60 |
| Product Shelf Life Post-Irradiation (months) | 24 |
| Animal Derived Ingredients (BSE/TSE) | Conforms with EMA/410/01 rev. 3 |
| California Prop. 65 | NO Substances on the California Proposition 65 list have been knowingly or intentionally added |
| Conflict Minerals | Not known to contain tantalum, tin, tungsten or gold. |
| European Pharmacopoeia (EP) 3.1.X | Pass 3.1.5 Polyethylene |
| Human Derived Ingredients | Does NOT intentionally contain human derived ingredients |
| Latex | Does NOT intentionally contain natural latex |
| Latex in Packaging | Does NOT intentionally contain natural latex |
| RoHS3 (2015/863) | Conforms to requirements of RoHS 2015/863 (RoHS3) |
| Gamma Compatible | Yes |
| Biocompatibility tested ISO 10993 | Yes |
| ISO 10993-X Claim Based on | Raw Material |
| USP Biocompatibility 88 | passes USP <88>, temperature not stated |
| USP Biocompatibility Claim Based On | Raw Material |
| Extractables Testing Claims | Other Report |
| Visible-Subvisible Particulate Claim | USP <788> |
| Tested via USP 661.1 | Yes |
| Integrity Tested? | Yes, routine random samples are tested |
