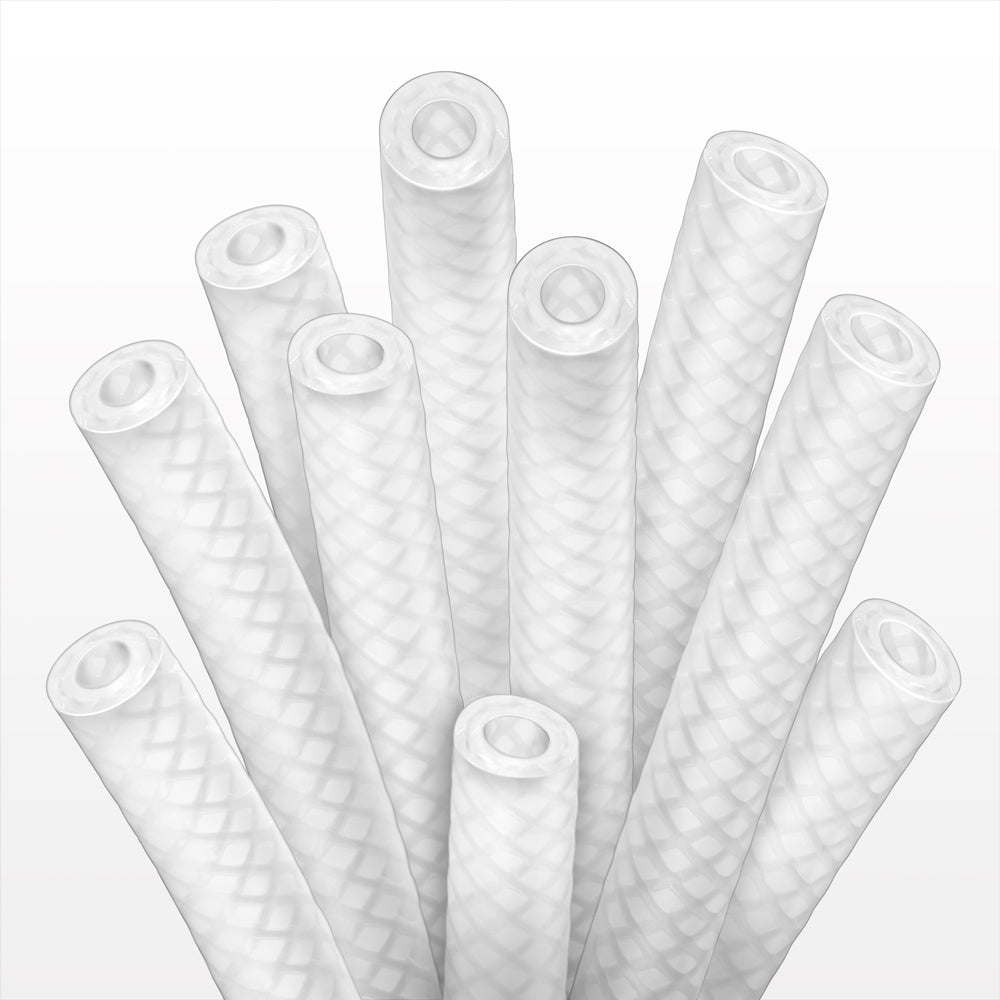

AdvantaSil™ APSH Braid-Reinforced Silicone Tubing - 70A Durometer; 1 inch ID x 1.405 inch OD (25.4 mm x 35.69 mm) x 50 ft coil (15.24 m) - T2151
AdvantaSil APSH braid-reinforced silicone tubing is designed for critical pharmaceutical, biopharmaceutical, cosmetic and food high-pressure...
Price :
Regular price
$1,991.95
Regular price
$1,991.95
AdvantaSil APSH braid-reinforced silicone tubing is designed for critical pharmaceutical, biopharmaceutical, cosmetic and food high-pressure applications. As per the manufacturer, this product is not intended for implantation, continuous steam applications, installation in any life support or similar product, installation in any good for which failure could result in personal injury or death, or installation in any good for an aircraft including products used in the operation or maintenance of an aircraft.
| Technical Detail | 70A Durometer; 1 inch ID x 1.405 inch OD (25.4 mm x 35.69 mm) x 50 ft coil (15.24 m) |
| Materials | Silicone |
| CAD Model Available | No |
| Packaging | 50 ft coil (15.24 m) |
| Manufacturing Environment Classification | ISO Class 7 / 10,000 / Grade C |
| Manufacturing Aids - Mold Release - Lubricant used | No |
| Colorant in Part | No |
| Regrind Used to Manufacture This Part | No |
| Hazardous Goods | No |
| Product Shelf Life Non-Irradiation (months) | 120 |
| Product Shelf Life Post-Irradiation (months) | 60 |
| Animal Derived Ingredients (BSE/TSE) | Animal Derived Component Free (ADCF) |
| California Prop. 65 | NO SUBSTANCES on the California Proposition 65 list have been knowingly or intentionally added |
| California Prop. 65 List Date | 8/11/2023 01:00:00 am |
| Conflict Minerals | Not known to contain tantalum, tin, tungsten or gold. |
| EU MDR 10.4.1 (CMR/ED) | No Substance(s) Present Above Threshold |
| European Pharmacopoeia (EP) 3.1.X | Pass 3.1.9 Silicone |
| Human Derived Ingredients | Does NOT intentionally contain human derived ingredients |
| Latex | Does NOT intentionally contain natural latex |
| Latex in Packaging | Does NOT intentionally contain natural latex |
| Medicinal Substances | Does NOT intentionally contain medicinal substances |
| Nanomaterials | Does NOT intentionally contain nanomaterials |
| PFAS | Does NOT intentionally contain PFAS |
| PFAS in Packaging | Does NOT intentionally contain PFAS |
| Pyrogens | Pyrogen free - Tested via USP <85> |
| REACH SVHC | Substance(s) Present Above Threshold |
| REACH SVHC Candidate List | 2025 June 25 (250 Substances) |
| RoHS3 (2015/863) | Conforms to requirements of RoHS 2015/863 (RoHS3) |
| EtO Compatible | Yes |
| Gamma Compatible | Yes |
| X-Ray Compatible | Yes |
| Biocompatibility tested ISO 10993 | Yes |
| ISO 10993-X Claim Based on | Finished Component |
| USP Biocompatibility 87 | Finished component passes USP<87> |
| USP Biocompatibility 88 | Passes USP <88> 70C |
| USP Biocompatibility Claim Based On | Finished Component |
| Residual Solvents: Tested via ICH Q3C Standard | Contains NO ICH Q3C Class 1 or 2 Residual Solvents |
| Elemental Impurities: Tested via ICH Q3D Standard | Contains ICH Q3D Class 1, 2, 2B or 3 Elemental Impurities |
| Protein Absorption Data Available | No |
| Extractables Testing Claims | Full BPOG BEDS |
| Visible-Subvisible Particulate Claim | USP <788> |
| Bioburden USP 61 62 | Bioburden values available |
| Tested via USP 661.1 | Yes |
| Integrity Tested? | No |
