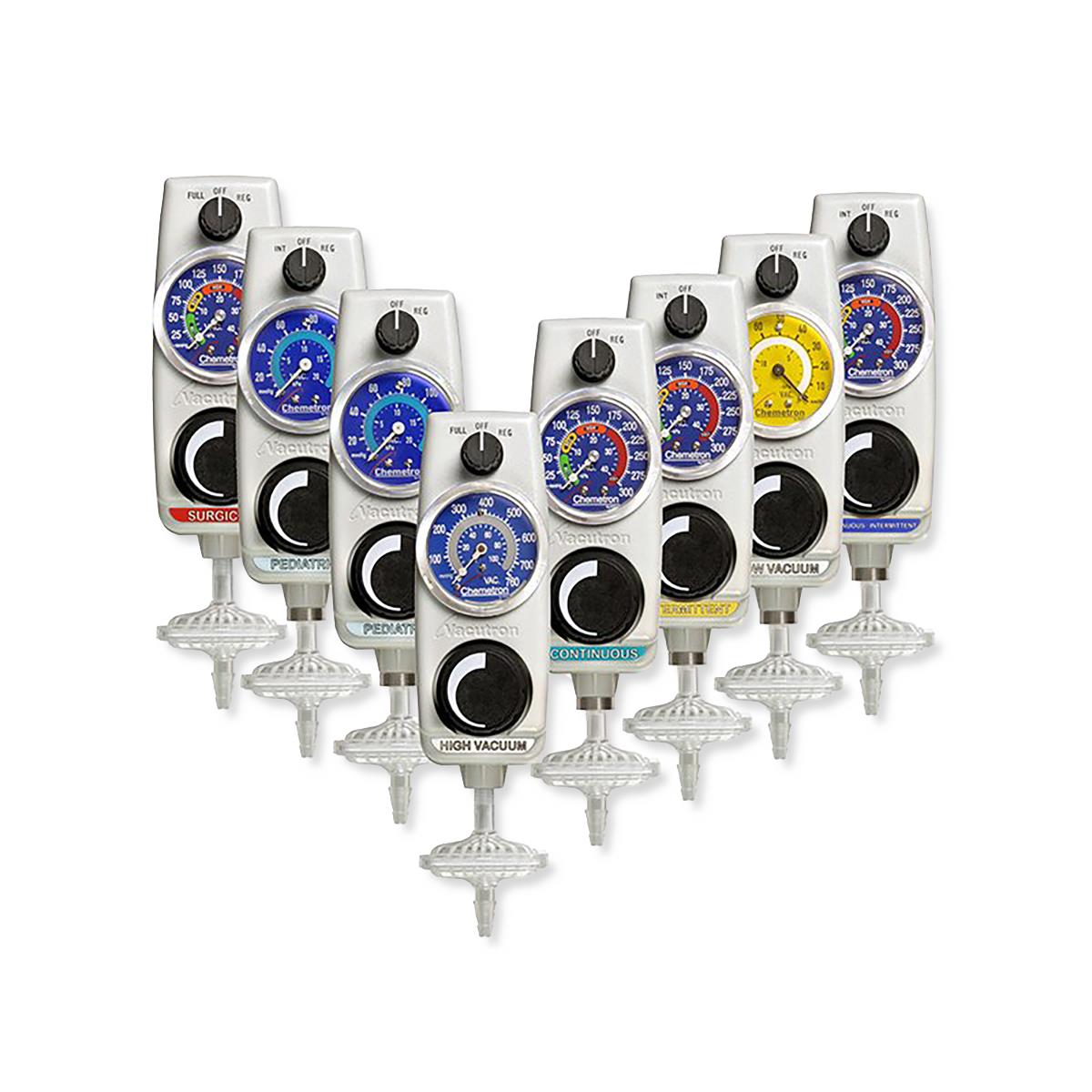

Allied Kits Chemtron Suction Regulator, Continuous or Intermittent, Barb

The Allied Kits Chemtron Suction Regulator, Continuous or Intermittent, Barb is specified for demanding clinical and facility environments. Solid aluminum valve construction. Specifications include latex-free materials.

Key Features

• Off, Regulate and Line positions on integral selector valve; fully open to line in Line position; fully vented to atmosphere in Off position.
• Three way selector valve with seal-less design for tight shut-off and precise vacuum control built into unit.
• Unique safety latch on selector valve, to prevent accidental application of Line vacuumZero adjustment on gauge.
• Large adjustment knob for fine tuning of vacuum.
• Leak Rate in Off position: Less than 1 cc/min.
• Regulation: ±10% at 200 mm. Hg from full flow with suction catheter attached to zero flow.
• Gauge: ANSI Class B, 270° span, 0-200 mmHg.
• Materials: Hard anodized aluminum, stainless steel, Lexan, Buna N rubber.
• Measures 2-1/2" in diameter, 5" long; weighs 1 lb.
• Sterilization: Gas, steam autoclave, Cidex or pasteurization.
