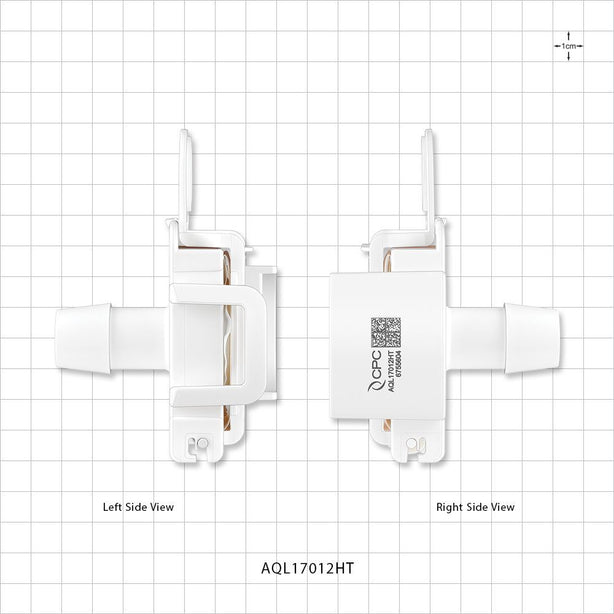

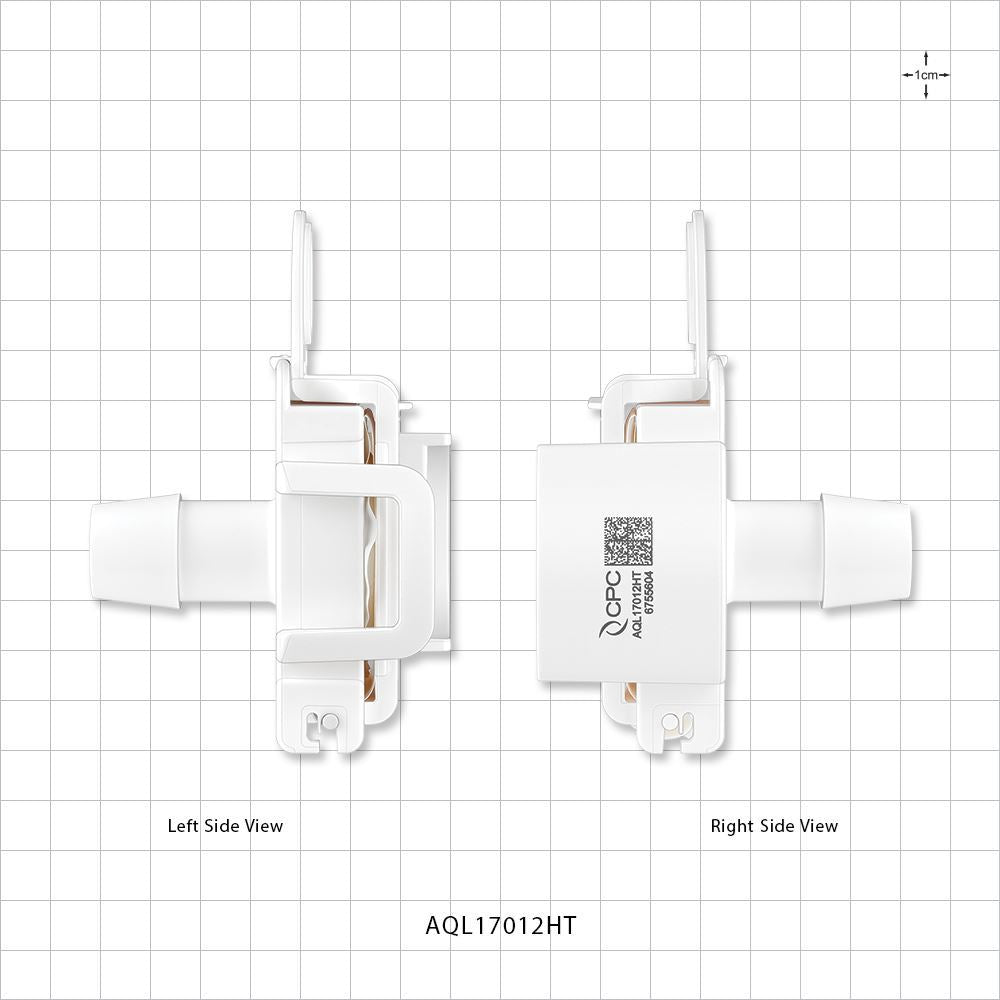

AseptiQuik L Connector, Genderless, Barbed, High Temperature - Fits 3/4 inch ID Tubing (0.75 inch, 19.05 mm) - AQL17012HT
Technical Detail Fits 3/4 inch ID Tubing (0.75 inch, 19.05 mm) Materials PC PES PC...
Price :
Regular price
$220.95
Regular price
$220.95
| Technical Detail | Fits 3/4 inch ID Tubing (0.75 inch, 19.05 mm) |
| Materials | PC PES PC PTFE Silicone |
| CAD Model Available | Yes |
| Manufacturing Environment Classification | ISO Class 7 / 10,000 / Grade C |
| Colorant in Part | Yes |
| Regrind Used to Manufacture This Part | No |
| Hazardous Goods | No |
| Product Shelf Life Non-Irradiation (months) | 36 |
| Product Shelf Life Post-Irradiation (months) | 36 |
| Animal Derived Ingredients (BSE/TSE) | Animal Derived Component Free (ADCF) |
| California Prop. 65 | SOME Substances on the California Proposition 65 list have been knowingly or intentionally added |
| California Prop. 65 List Date | 1/9/2022 07:00:00 pm |
| Conflict Minerals | Not known to contain tantalum, tin, tungsten or gold. |
| EU MDR 10.4.1 (CMR/ED) | No Substance(s) Present Above Threshold |
| EU MDR 10.4.1 (CMR/ED) Substance List | Annex VI to CLP_ATP17 - 17 December 2022 |
| European Pharmacopoeia (EP) 3.1.X | Information Not Available |
| Human Derived Ingredients | Does NOT intentionally contain human derived ingredients |
| Latex | Does NOT intentionally contain natural latex |
| Latex in Packaging | Does NOT intentionally contain natural latex |
| Nanomaterials | Does NOT intentionally contain nanomaterials |
| Pyrogens | Pyrogen free - Tested via USP <85> |
| RoHS3 (2015/863) | Conforms to requirements of RoHS 2015/863 (RoHS3) |
| Gamma Compatible | Yes |
| Biocompatibility tested ISO 10993 | Yes |
| ISO 10993-X Claim Based on | Raw Material |
| USP Biocompatibility 87 | Raw materials pass USP <87> |
| USP Biocompatibility 88 | passes USP <88> 70C |
| USP Biocompatibility Claim Based On | Raw Material |
| Residual Solvents: Tested via ICH Q3C Standard | Contains ICH Q3C Class 1 or 2 Residual Solvents |
| Elemental Impurities: Tested via ICH Q3D Standard | Contains ICH Q3D Class 1, 2, 2B or 3 Elemental Impurities |
| Protein Absorption Data Available | No |
| Extractables Testing Claims | Other Report |
| Visible-Subvisible Particulate Claim | USP <788> |
| Tested via USP 661.1 | Yes |
| Integrity Tested? | Yes, routine random samples are tested |
