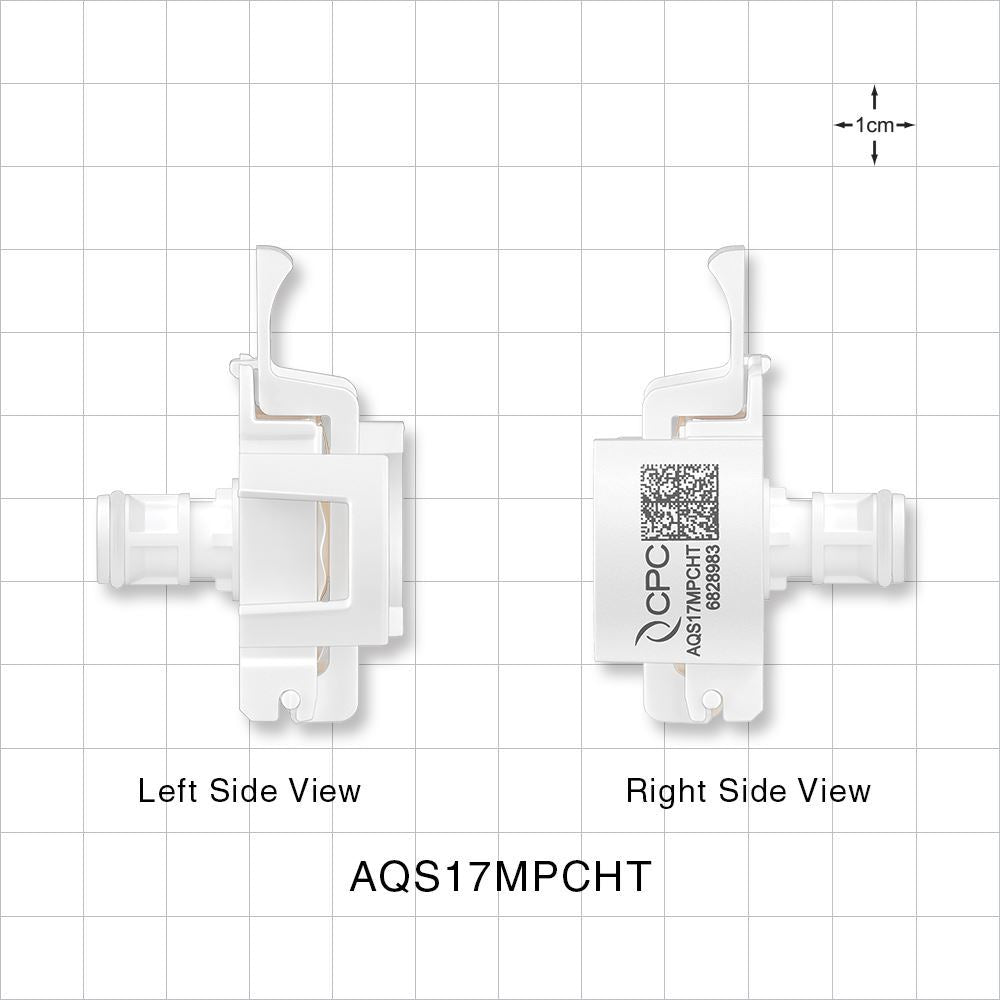

AseptiQuik S Connector, Genderless, MPC Insert, High Temperature - - AQS17MPCHT
Manufactured by CPC, this AseptiQuik connector provides a quick and easy sterile connection, a critical...
Price :
Regular price
$67.95
Regular price
$67.95
Manufactured by CPC, this AseptiQuik connector provides a quick and easy sterile connection, a critical capability for biopharmaceutical manufacturers. Featuring an easy-to-use, three-step design and a wide range of options, Qosina part number AQS17MPCHT allows easy transfer of media with less risk of error. This connector also features a genderless design and MPC Insert. Made from high temperature polycarbonate and silicone, this quick disconnect's robust, reliable performance eliminates the need for clamps, fixtures or tube welders, providing high quality, single-use connections every time.
| Materials | PC PES PC PTFE Silicone |
| CAD Model Available | Yes |
| Manufacturing Environment Classification | ISO Class 7 / 10,000 / Grade C |
| Colorant in Part | Yes |
| Regrind Used to Manufacture This Part | No |
| Hazardous Goods | No |
| Product Shelf Life Non-Irradiation (months) | 36 |
| Product Shelf Life Post-Irradiation (months) | 36 |
| Animal Derived Ingredients (BSE/TSE) | Animal Derived Component Free (ADCF) |
| California Prop. 65 | SOME Substances on the California Proposition 65 list have been knowingly or intentionally added |
| California Prop. 65 List Date | 1/9/2022 07:00:00 pm |
| Conflict Minerals | Not known to contain tantalum, tin, tungsten or gold. |
| EU MDR 10.4.1 (CMR/ED) | No Substance(s) Present Above Threshold |
| EU MDR 10.4.1 (CMR/ED) Substance List | Annex VI to CLP_ATP17 - 17 December 2022 |
| European Pharmacopoeia (EP) 3.1.X | Information Not Available |
| Human Derived Ingredients | Does NOT intentionally contain human derived ingredients |
| Latex | Does NOT intentionally contain natural latex |
| Latex in Packaging | Does NOT intentionally contain natural latex |
| Nanomaterials | Does NOT intentionally contain nanomaterials |
| Pyrogens | Pyrogen free - Tested via USP <85> |
| RoHS3 (2015/863) | Conforms to requirements of RoHS 2015/863 (RoHS3) |
| Gamma Compatible | Yes |
| Biocompatibility tested ISO 10993 | Yes |
| ISO 10993-X Claim Based on | Raw Material |
| USP Biocompatibility 87 | Raw materials pass USP <87> |
| USP Biocompatibility 88 | passes USP <88> 70C |
| USP Biocompatibility Claim Based On | Raw Material |
| Residual Solvents: Tested via ICH Q3C Standard | Contains ICH Q3C Class 1 or 2 Residual Solvents |
| Elemental Impurities: Tested via ICH Q3D Standard | Contains ICH Q3D Class 1, 2, 2B or 3 Elemental Impurities |
| Protein Absorption Data Available | No |
| Extractables Testing Claims | Other Report |
| Visible-Subvisible Particulate Claim | USP <788> |
| Tested via USP 661.1 | Yes |
| Integrity Tested? | Yes, routine random samples are tested |
