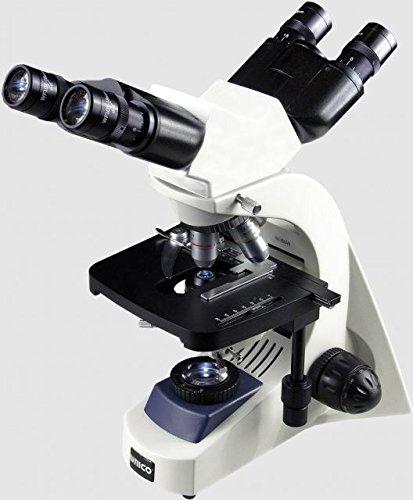

Microscope IP758, Dual Inf, 4/10/40/100, Infinity Binocular - IP758 - 1 Each

Microscope IP758, Dual Inf, 4/10/40/100, Infinity Binocular

The Microscope IP758, Dual Inf, 4/10/40/100, Infinity Binocular covers everyday requirements across clinical and laboratory settings. Head: DUAL Binocular head with 52 - 75 mm interpupillary distance adjustment. Rotating 360°, and lock in-place with a thumbscrew.

Key Features

• All optics feature the following coatings: Anti-Glare, Color Correction, Anti-Fungal.
• Standard eyepiece with 10x "High-Eyepoint" extra-widefield oculars.
• Reticules and Pointers available on request.
• Objectives feature Infinity Optics, Achromat or Plan, 4x, 0x, 40xR and 100xR objectives. 40 and 100x objectives are "R", or Retractable. 100x is an Oil Immersion objective.
• Magnification: With 10X eyepieces, standard magnification is 40X, 100X, 400X and 1,000X.
• Sturdy cast metal frame with unique polymer accent panel, designed to provide stability while dissipating bulb heat.
• Condenser: ocusable and centerable Abbe condenser NA 1.25 with graduated Iris diaphragm and filter holder.
• Focusing features smooth, extra-large graduated coaxial coarse and fine focus controls with tension adjustment to eliminate stage drift. Adjustable to your personal preferences.
• Large heavy duty, built-in mechanical stage with low coaxial controls provides larger (180mm x 150mm) platform with X-Y travel of 76 mm x 50 mm graduated in 0.1 mm assures flexibility.
• The built-in illuminator with field diaphragm provides Koehler type illumination. The brightness intensity control provides steady even illumination at all levels.
• Iris Diaphragm features adjustable Iris with metal leaf overlay design. Optical design allows for Blue and other filters to be mounted in the illuminator housing.
• UL & CSA approved electrical parts, three wire grounded electric cord.
• Five Year Limited Warranty, One Year on electrical system; excludes bulbs and fuses.
