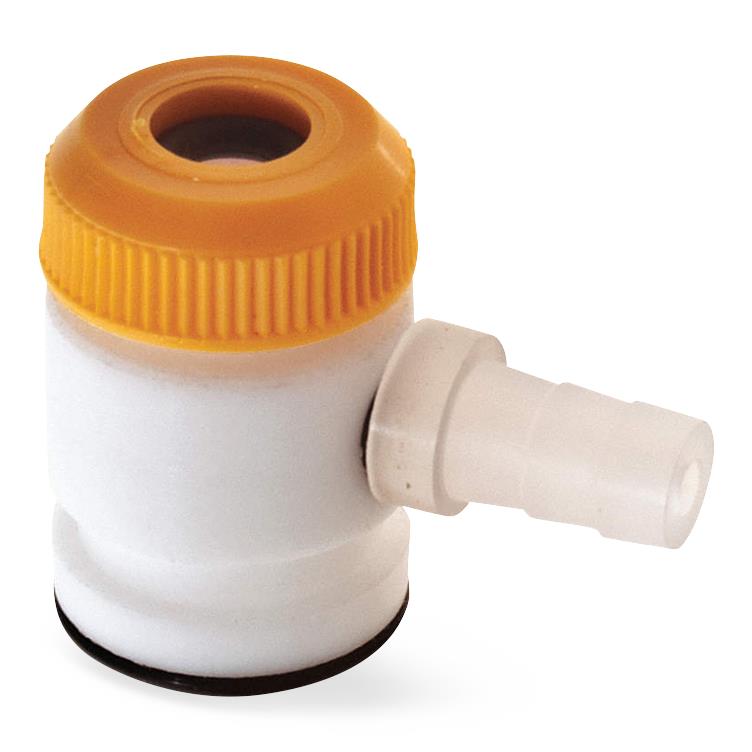

Dwk Life Sciences Kimble PTFE BEVEL-SEAL Hose Inlet Adapter, 24/25 ST Joint, 5.5 to 6.5 mm Range - CSX1798502124

Dwk Life Sciences Kimble PTFE BEVEL-SEAL Hose Inlet Adapter, 24/25 ST Joint, 5.5 to 6.5 mm Range

The Dwk Life Sciences Kimble PTFE BEVEL-SEAL Hose Inlet Adapter, 24/25 ST Joint, 5.5 to 6.5 mm Range covers everyday requirements across clinical and facility settings. Designed to adapt a variety of tubes, condensers and filters in Standard Taper 14/20 and Standard Taper 24/25-24/40 glassware.

Key Features

• Body is PTFE, o-rings are FKM, polypropylene compression cap is suitable for use to 150 °C, and side port is CTFE.
• Provides a combination inlet and vent tube on a single neck vessel.
• Converts plain stem type funnels for vacuum filtration.
• Extends gas inlet or gas dispersion tube into a flask to function as an impinger.
• Serves as a pressure relief vent when used with addition funnels.
• BEVEL-SEAL TM top for a thermometer.
• Side hose connection.
• Can be used to construct gas washing bottles.
• Diameter variations of 1 to 2 mm can be accommodated since the inert o-ring is compressed by the open-top polypropylene cap to create a vacuum-tight seal.
• The serrated side port can be used for a vacuum connection or for the introduction of gases.
• Side port o-ring size is 010.
• Bottom has a Standard Taper inner joint.
• Product must be used in compliance with the intended use statement listed on the product or its accompanying product information.

Specifications
