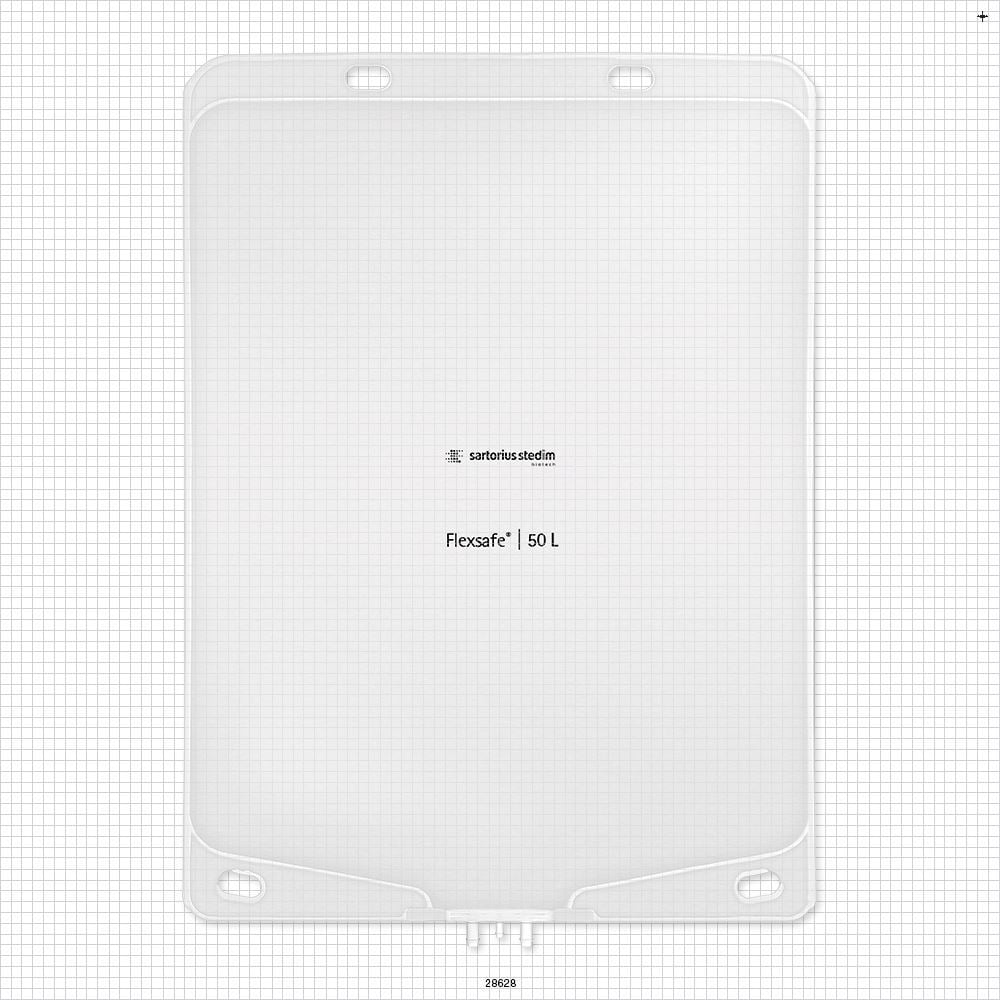

Flexsafe 2D Bag Chamber, 3 Ports, Non-Sterile - 50 Liter; 2 Ports Fit 3/8 inch ID Tubing (0.375 inch, 9.53 mm); 1 Port Fits 1/4 inch ID Tubing (0.25 inch, 6.35 mm) - 28628
Qosina part number XXXXXX is a robust fluid storage and transfer bag chamber ideal for...
Price :
Regular price
$128.95
Regular price
$128.95
Qosina part number XXXXXX is a robust fluid storage and transfer bag chamber ideal for upstream and downstream bioprocessing applications. Manufactured with Flexsafe S80 film, this multilayer film is composed of a polyethylene (PE) contact layer and co-extruded PE-EVOH-PE backbone structure, allowing for superior gas barrier properties. This film offers excellent biocompatibility, a low extractables profile, and superior strength and flexibility. It features a boat port design, made of PE, and includes hanging holes for improved handling.
| Technical Detail | 50 Liter; 2 Ports Fit 3/8 inch ID Tubing (0.375 inch, 9.53 mm); 1 Port Fits 1/4 inch ID Tubing (0.25 inch, 6.35 mm) |
| Materials | PE PE |
| CAD Model Available | No |
| Manufacturing Environment Classification | ISO Class 7 / 10,000 / Grade C |
| Manufacturing Aids - Mold Release - Lubricant used | Yes |
| Colorant in Part | No |
| Regrind Used to Manufacture This Part | No |
| Hazardous Goods | No |
| Product Shelf Life Non-Irradiation (months) | 36 |
| Product Shelf Life Post-Irradiation (months) | 36 |
| Animal Derived Ingredients (BSE/TSE) | Conforms with EMA/410/01 rev. 3 |
| California Prop. 65 | NO Substances on the California Proposition 65 list have been knowingly or intentionally added |
| California Prop. 65 List Date | 12/5/2025 12:00:00 am |
| Conflict Minerals | Not known to contain tantalum, tin, tungsten or gold. |
| EU MDR 10.4.1 (CMR/ED) | Information Not Available |
| European Pharmacopoeia (EP) 3.1.X | Pass 3.1.5 Polyethylene |
| Human Derived Ingredients | Does NOT intentionally contain human derived ingredients |
| Latex | Does NOT intentionally contain natural latex |
| Latex in Packaging | Does NOT intentionally contain natural latex |
| Medicinal Substances | Does NOT intentionally contain medicinal substances |
| Nanomaterials | Does NOT intentionally contain nanomaterials |
| Pyrogens | Pyrogen free - Tested via USP <85> |
| REACH SVHC | No Substance(s) Present Above Threshold |
| REACH SVHC Candidate List | 2023 June 14 (235 Substances) |
| RoHS3 (2015/863) | Conforms to requirements of RoHS 2015/863 (RoHS3) |
| Gamma Compatible | Yes |
| X-Ray Compatible | Yes |
| Biocompatibility tested ISO 10993 | Yes |
| ISO 10993-X Claim Based on | Finished Component |
| USP Biocompatibility 87 | Finished component passes USP<87> |
| USP Biocompatibility 88 | passes USP <88>, temperature not stated |
| USP Biocompatibility Claim Based On | Finished Component |
| Elemental Impurities: Tested via ICH Q3D Standard | Contains NO ICH Q3D Class 1, 2, 2B or 3 Elemental Impurities |
| Protein Absorption Data Available | No |
| Extractables Testing Claims | Other Report |
| Visible-Subvisible Particulate Claim | USP <788> |
| Bioburden USP 61 62 | No bioburden information available |
| Tested via USP 661.1 | Yes |
| Integrity Tested? | Yes, 100% |
