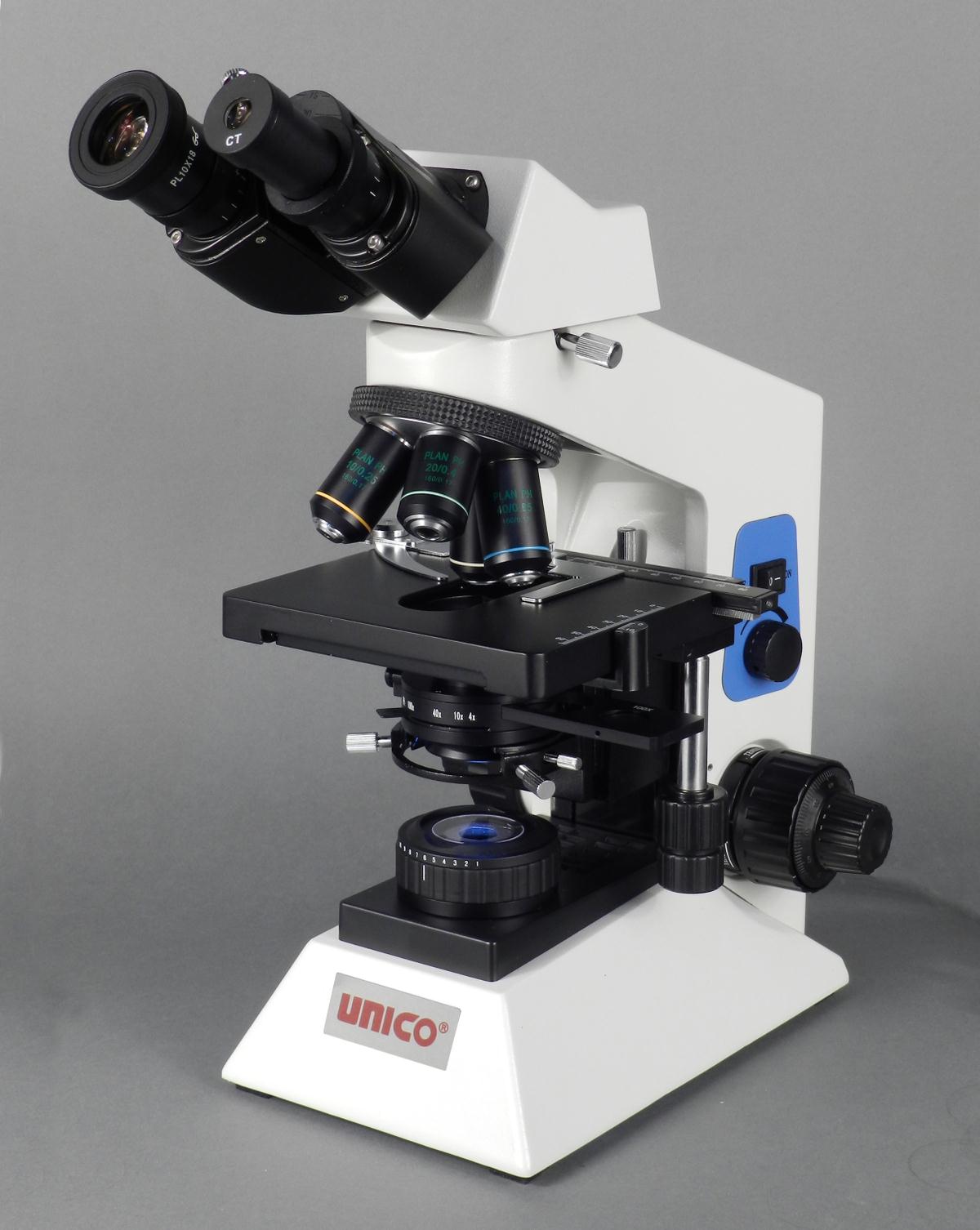

Microscope G505, Adv Phase Binoc Plan, LED, Contrast Binocular - G505 - 1 Each

Microscope G505, Adv Phase Binoc Plan, LED, Contrast Binocular

The Microscope G505, Adv Phase Binoc Plan, LED, Contrast Binocular is specified for demanding clinical and facility environments. Features of Unico G504 Series Binocular LED Microscope:.

Key Features

• Seidentopf Head.
• Paired 10x Eyepiece.
• 5 Position nose piece.
• WF10X/FN 18 High point eyepieces.
• A pointer or reticule can be added.
• Objectives are parfocal, parecentered and color-coded.
• The low position coaxial coarse and fine focusing system designed to lessen user fatigue.
• The coarse focus tension control allows to increase or decrease the focusing tension.
• The safety stop prevents damage to objectives and specimens.
• The fine focusing is graduated at 0.002 mm.
• Ruggedly constructed all metal stand and broad low profile base.
• Heavy duty, built-in mechanical stage uses ball bearings and a dovetail mechanism.
• Low coaxial controls.
• Abbe condenser NA 1.25 with graduated iris diaphragm.
• Built-in LED illuminator with field diaphragm provides Koehler type illumination for sharp images.
• The brightness intensity control is conveniently located and provides steady even illumination at all levels.
• 10x/20x/40x/100x Plan Phase Objectives.
• 10x/40x Phase Annulus.
• 20x/100x Phase Annulus.

Specifications
