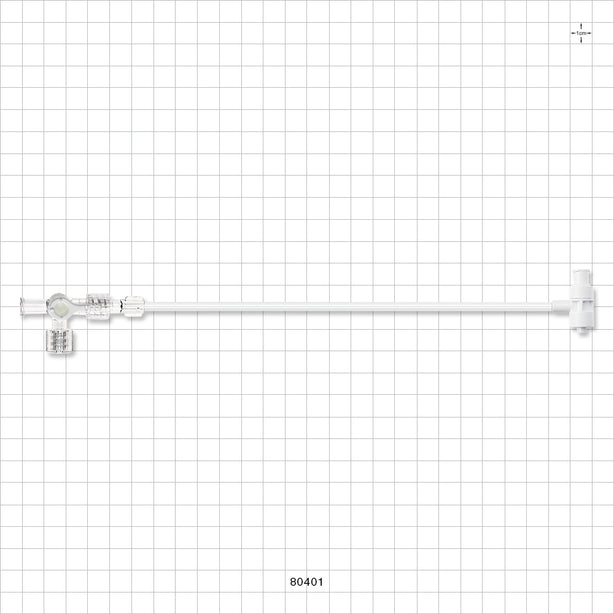

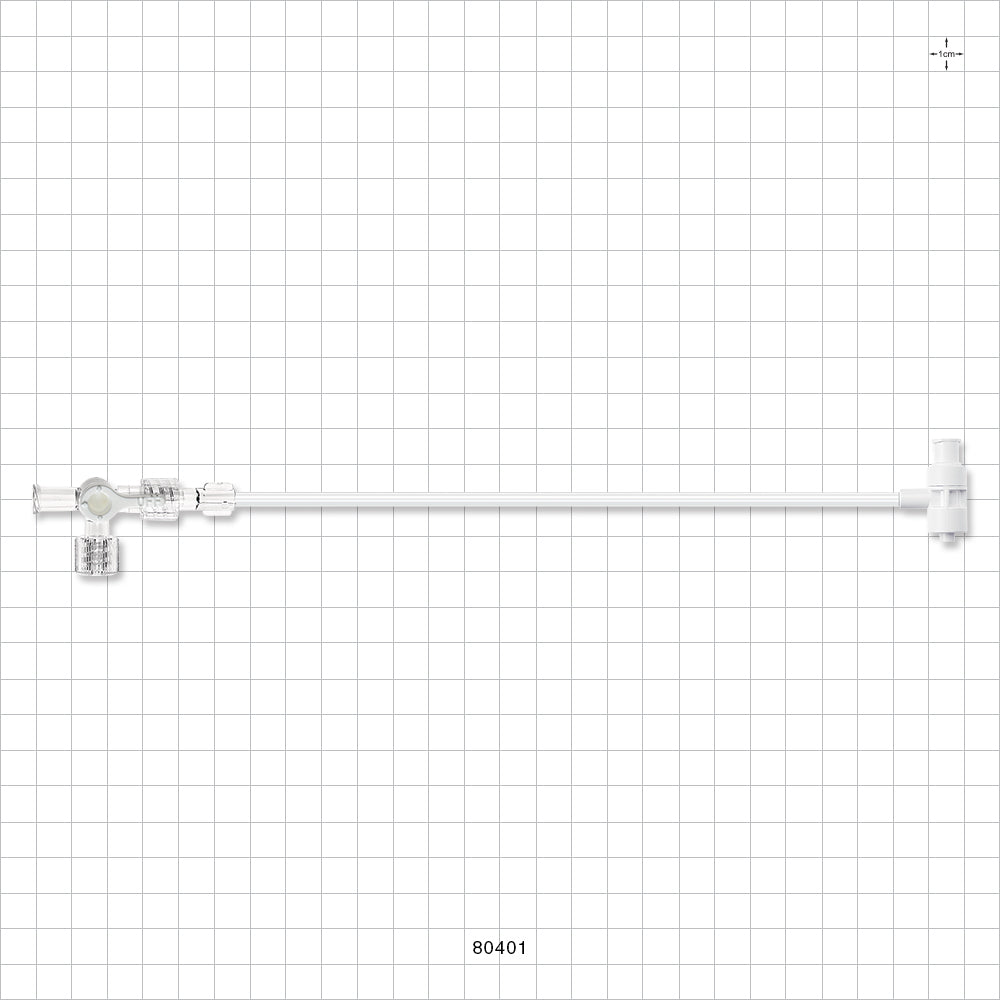

Hemostasis Valve with sideport line - 7 FR - 9 FR (0.091 inch - 0.118 inch, 2.3 mm - 3 mm); 9.5 inch Length (241.3 mm) - 80401
Qosina offers a variety of hemostasis valves that are in stock and ready for immediate...
Price :
Regular price
$20.95
Regular price
$20.95
Qosina offers a variety of hemostasis valves that are in stock and ready for immediate delivery. Qosina part #80401 is an ISO 80369-7 compliant, hemostasis valve with side port tubing and 3-way stopcock. With an overall length of 9.5 inches, this 7 - 9 FR hemostasis valve is ideal for maintaining hemostasis during the introduction/withdrawl and use of diagnostic and internvetional devices. Qosina carries a large selection of hemostasis valves and stopcocks for all your component needs.
| Technical Detail | 7 FR - 9 FR (0.091 inch - 0.118 inch, 2.3 mm - 3 mm); 9.5 inch Length (241.3 mm) |
| Materials | ABS PC HDPE Colorant ABS PC PC PC PVC Silicone |
| CAD Model Available | No |
| Manufacturing Environment Classification | ISO Class 8 / 100,000 / Grade D |
| Manufacturing Aids - Mold Release - Lubricant used | No |
| Colorant in Part | No |
| Regrind Used to Manufacture This Part | No |
| Hazardous Goods | No |
| Animal Derived Ingredients (BSE/TSE) | Animal Derived Component Free (ADCF) |
| California Prop. 65 | NO Substances on the California Proposition 65 list have been knowingly or intentionally added |
| Conflict Minerals | Not known to contain tantalum, tin, tungsten or gold. |
| EU MDR 10.4.1 (CMR/ED) | Substance(s) Present Above Threshold |
| EU MDR 10.4.1 (CMR/ED) Substance List | Annex VI to CLP_ATP17 - 17 December 2022 |
| European Pharmacopoeia (EP) 3.1.X | Information Not Available |
| Latex | Does NOT intentionally contain natural latex |
| Latex in Packaging | Does NOT intentionally contain natural latex |
| PFAS | Does NOT intentionally contain PFAS |
| PFAS in Packaging | Does NOT intentionally contain PFAS |
| Pyrogens | Not Tested for Pyrogens |
| REACH SVHC | Substance(s) Present Above Threshold |
| REACH SVHC Candidate List | 2023 January 17 (233 Substances) |
| RoHS3 (2015/863) | Conforms to requirements of RoHS 2015/863 (RoHS3) |
| EtO Compatible | Yes |
| USP Biocompatibility 88 | passes USP <88>, temperature not stated |
| USP Biocompatibility Claim Based On | Finished Component |
| Residual Solvents: Tested via ICH Q3C Standard | No ICH Q3C Testing Performed |
| Elemental Impurities: Tested via ICH Q3D Standard | No ICH Q3D Testing Performed |
| Protein Absorption Data Available | No |
| Extractables Testing Claims | No Extractables Testing Performed |
| Bioburden USP 61 62 | No bioburden information available |
| Tested via USP 661.1 | No |
| Integrity Tested? | No |
