In-Line Flow Indicator, Barbed - Fits 1/4 inch - 5/16 inch ID Tubing (0.25 inch - 0.312 inch, 6.35 mm - 7.9 mm) - 80036
Qosina offers a variety of valves that are in stock and ready for immediate delivery....
Price :
Regular price
$9.95
Regular price
$9.95

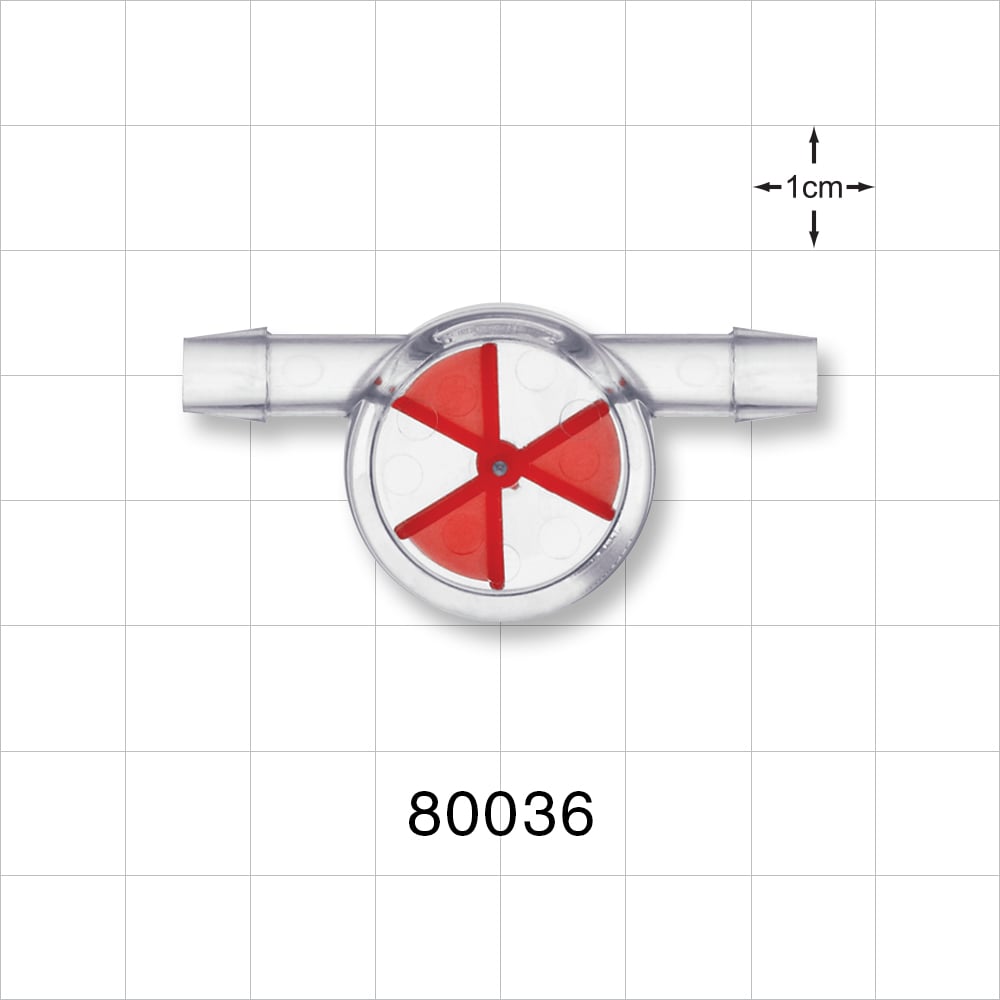

Qosina offers a variety of valves that are in stock and ready for immediate delivery. Qosina part # 80036 is a visual flow indicator, ideal for oxygen tubing delivery systems. Made of acrylic and polypropylene, this valve's red wheel spins when flow is present, providing immediate indication of fluid or gas flow, and it's barbed inlet and outlet can accept 1/4 inch to 5/16 inch ID tubes. Qosina offers a variety of oxygen bushings and respiratory accessories to complement this barbed flow indicator.
| Technical Detail | Fits 1/4 inch - 5/16 inch ID Tubing (0.25 inch - 0.312 inch, 6.35 mm - 7.9 mm) |
| Materials | Acrylic PP Colorant |
| CAD Model Available | No |
| Manufacturing Environment Classification | Controlled but not formally classified |
| Colorant in Part | Yes |
| Hazardous Goods | No |
| California Prop. 65 | NO Substances on the California Proposition 65 list have been knowingly or intentionally added |
| California Prop. 65 List Date | 12/29/2023 12:00:00 am |
| EU MDR 10.4.1 (CMR/ED) | No Substance(s) Present Above Threshold |
| EU MDR 10.4.1 (CMR/ED) Substance List | Annex VI to CLP_ATP20 - 01 February 2025 |
| Latex | Does NOT intentionally contain natural latex |
| Latex in Packaging | Does NOT intentionally contain natural latex |
| PFAS | Does NOT intentionally contain PFAS |
| PFAS in Packaging | Does NOT intentionally contain PFAS |
| REACH SVHC | No Substance(s) Present Above Threshold |
| REACH SVHC Candidate List | 2024 January 23 (240 Substances) |
| Gamma Compatible | Yes |
| Biocompatibility tested ISO 10993 | No |
| USP Biocompatibility 88 | passes USP <88>, temperature not stated |
| USP Biocompatibility Claim Based On | Raw Material |
| Residual Solvents: Tested via ICH Q3C Standard | No ICH Q3C Testing Performed |
| Extractables Testing Claims | No Extractables Testing Performed |
| Bioburden USP 61 62 | No bioburden information available |
| Tested via USP 661.1 | No |
