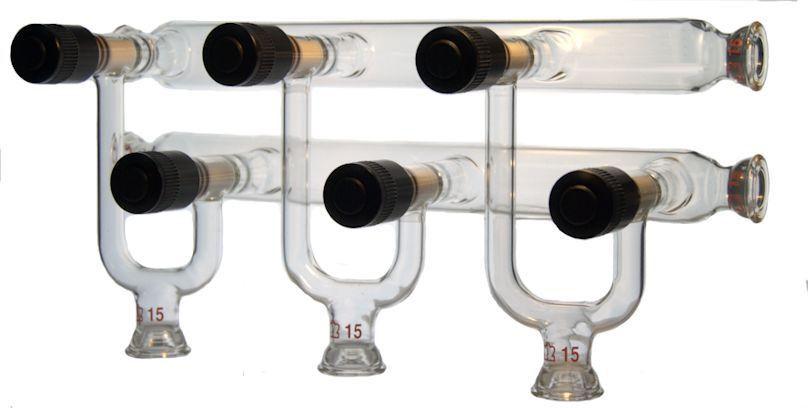

Kimble Double Vacuum Manifold with HI-VAC Valve - 216040-0003 - 1 Each - MDL-CSX2160400003

Double Vacuum Manifold with HI-VAC Valve, 3 PlaceTRUE

• Double Vacuum Gas Manifold
• This Manifold Is Designed For Grease-Free Operation Double Vacuum Gas Manifold With Hi-Vac Valves
• Incorporates Reliable Kimble Hi-Vac Valves, With Size 15 O-Ring Connectors And Size 116 Fkm O-Rings
• Designed For Use With 211320 Adapters
• Forward-Facing Valves Allow Good Access
• Compact Enough For Ease Of Assembly Within A Fume Hood, Thereby Protecting The Researcher From Noxious Chemicals
• Unit Is Modular In Concept, Allowing Experiments To Be Done With Maximum Flexibility
• Unions And Flexible Stainless Steel Tubing Are Also Available To Maximize The Utility Of This Manifold
• Can Easily Be Disassembled For Cleaning If Necessary
• Replacement Plug Is 826501-0008 With Two Size 110 Fkm O-Rings And One Size 011 Fkm Tip O-Ring
• Ports Are Spaced 100 Mm Apart
• Ref: Andrea Wayda, At&T Bell Laboratories
• Manufactured From 33 Expansion, Low Extractable Borosilicate Glass Conforming To Usp Type I And Astm E438, Type I, Class A Requirements
