Kimble SPE Manifold - 971200-3000 - 1 Each - MDL-CSX9712003000

SPE Manifold, 3-PlaceTRUE

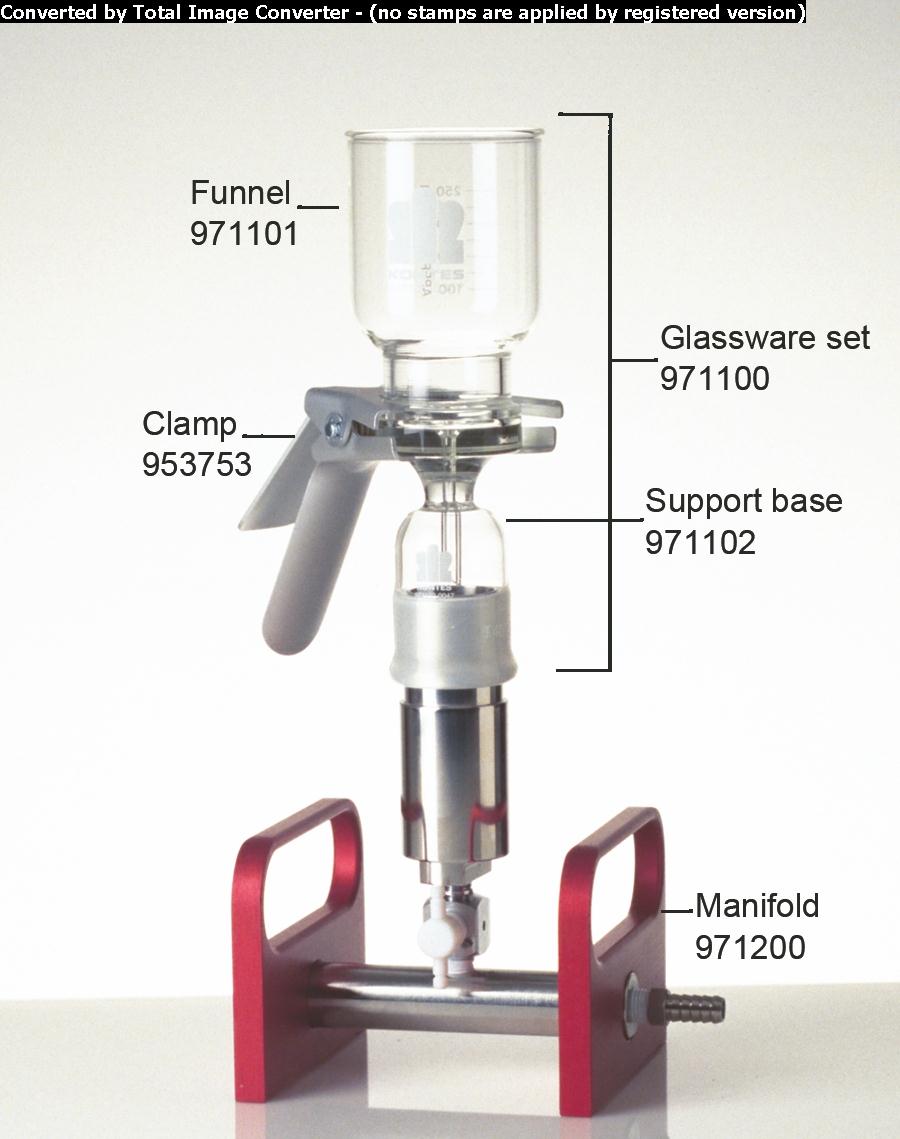

• SPE Manifold
• 1-place
• Material: Kontes Stainless steel
• Sold Individually
• Kontes SPE Glassware and Manifolds are specially designed as support systems for 47 mm and 90 mm diameter solid phase extraction disks to give you the highest possible recoveries of extracted analytes from your drinking water, surface water and waste water samples
• All SPE manifolds are supplied with three-way valves that allow the venting to atmosphere of each station without affecting the vacuum in the rest of the system
• The SPE funnels have a sharp edge on the bottom inside diameter that, combined with the stronger spring in our aluminum clamps, minimizes any horizontal capillary action of the sample and solvent into the disk
• Extracted samples can be collected directly into K-D concentrator tubes,EPA water analysis vials, sample vials and test tubes up to 30 mm OD x 100 mm high
• The SPE support bases have a specially designed internal surface that reduces dead volume and minimizes holdback of the extracted analyte
• The PTFE-coated stainless steel support screen reduces the possibility of sample-to-sample cross contamination compared to the traditional glass frit
• The PTFE coating also protects the support screen from corrosion caused by acid-preserved samples
• Required accessories are a vacuum source, 1/4" ID vacuum tubing, an aspirator bottle and sample collection tubes. Recommended accessories are a vacuum trap (when using a dry air vacuum pump) and either Standard Taper 40/35 PTFE joint sleeves or silicone stopcock grease
