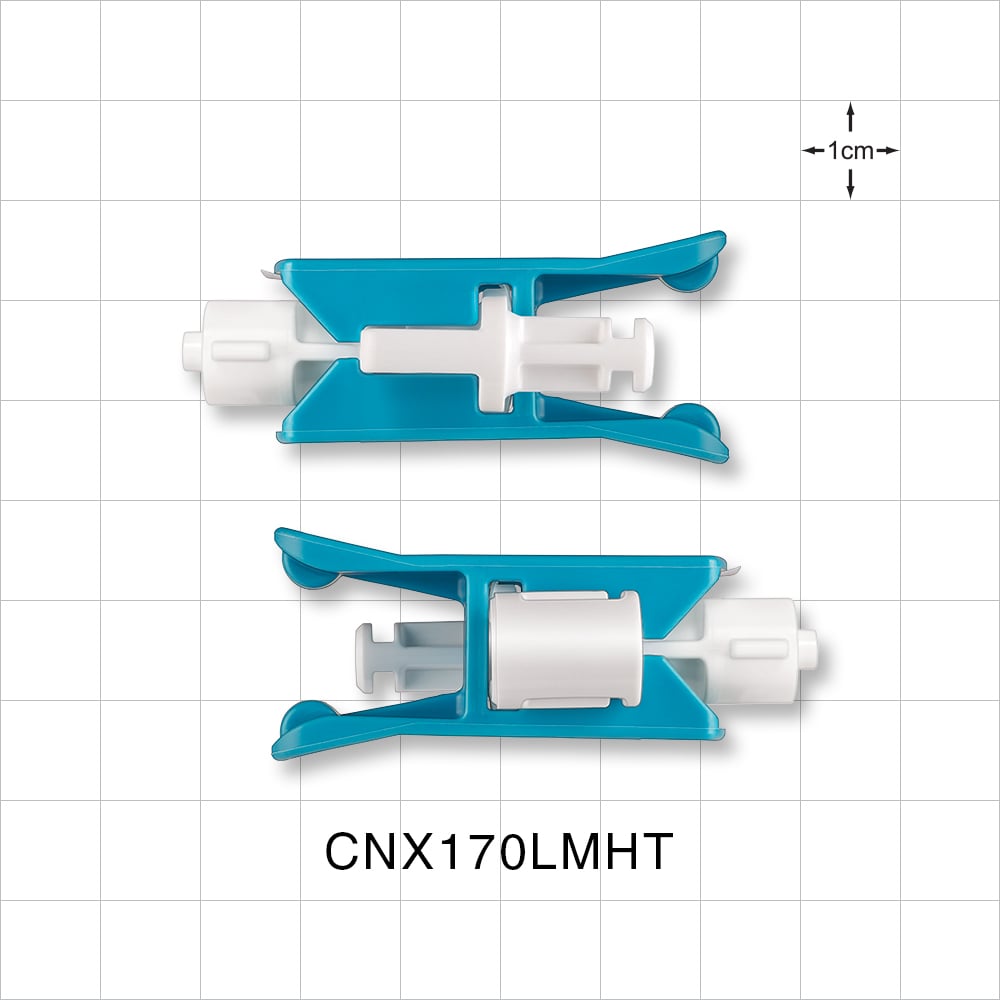

MicroCNX Connector, Genderless, Male Luer, High Temperature - - CNX170LMHT
Materials PC Silicone PES PP CAD Model Available Yes Manufacturing Environment Classification ISO Class 7...
Price :
Regular price
$35.95
Regular price
$35.95
| Materials | PC Silicone PES PP |
| CAD Model Available | Yes |
| Manufacturing Environment Classification | ISO Class 7 / 10,000 / Grade C |
| Manufacturing Aids - Mold Release - Lubricant used | No |
| Regrind Used to Manufacture This Part | No |
| Hazardous Goods | No |
| Product Shelf Life Non-Irradiation (months) | 36 |
| Product Shelf Life Post-Irradiation (months) | 36 |
| Animal Derived Ingredients (BSE/TSE) | Animal Derived Component Free (ADCF) |
| California Prop. 65 | SOME SUBSTANCES on the California Proposition 65 list have been knowingly or intentionally added |
| Conflict Minerals | Not known to contain tantalum, tin, tungsten or gold. |
| European Pharmacopoeia (EP) 3.1.X | Information Not Available |
| Human Derived Ingredients | Does NOT intentionally contain human derived ingredients |
| Latex | Does NOT intentionally contain natural latex |
| Latex in Packaging | Does NOT intentionally contain natural latex |
| Medicinal Substances | Information Not Available |
| Nanomaterials | Does NOT intentionally contain nanomaterials |
| Pyrogens | Not tested for pyrogens |
| REACH SVHC | No Substance(s) Present Above Threshold |
| REACH SVHC Candidate List | 2024 June 27 (241 Substances) |
| RoHS3 (2015/863) | Conforms to requirements of RoHS 2015/863 (RoHS3) |
| Gamma Compatible | Yes |
| Biocompatibility tested ISO 10993 | Yes |
| ISO 10993-X Claim Based on | Raw Material |
| USP Biocompatibility 87 | Raw materials pass USP <87> |
| USP Biocompatibility 88 | Passes USP <88> 50C |
| USP Biocompatibility Claim Based On | Finished Component |
| Residual Solvents: Tested via ICH Q3C Standard | Contains NO ICH Q3C Class 1 or 2 Residual Solvents |
| Elemental Impurities: Tested via ICH Q3D Standard | Contains NO ICH Q3D Class 1, 2, 2B or 3 Elemental Impurities |
| Protein Absorption Data Available | No |
| Extractables Testing Claims | Modified BPOG |
| Visible-Subvisible Particulate Claim | USP <788> |
| Bioburden USP 61 62 | No bioburden information available |
| Tested via USP 661.1 | Yes |
| Integrity Tested? | Yes, 100% |
