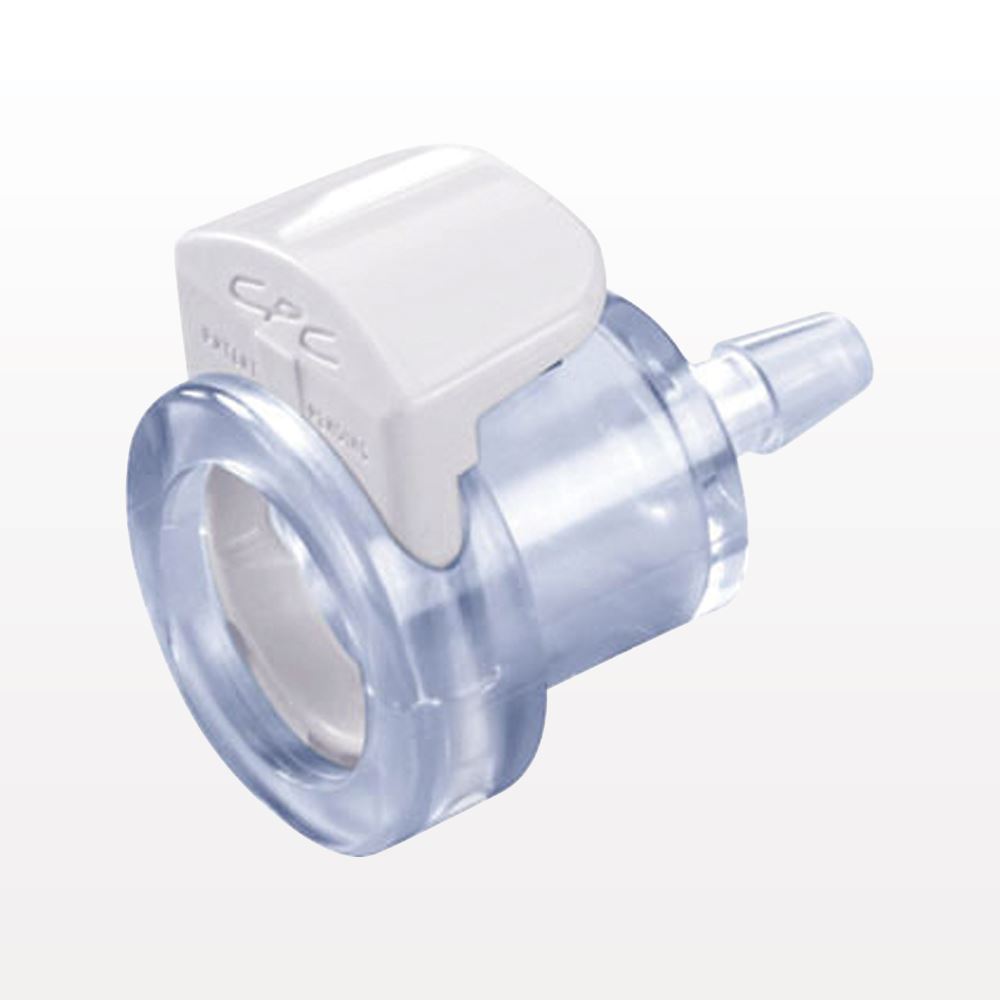

MPC™ Connector, Body, Non-Valved, Barbed - Fits 1/8 inch ID Tubing (0.125 inch, 3.18 mm) - MPC17002T03
Manufactured by CPC, this MPC coupling body features a straight-thru, in-line hose barb. This connector...
Price :
Regular price
$6.95
Regular price
$6.95
Manufactured by CPC, this MPC coupling body features a straight-thru, in-line hose barb. This connector is easy to use and provides a secure connection for critical fluid applications, allowing for quick and safe fluid transfer. An ergonomic thumb latch can be operated even by gloved hands, and an audible click lets the operator know when the connection is secured. Coupling halves can be rotated when connected to reduce tubing kinks.
| Technical Detail | Fits 1/8 inch ID Tubing (0.125 inch, 3.18 mm) |
| Materials | PC |
| CAD Model Available | Yes |
| Manufacturing Environment Classification | ISO Class 7 / 10,000 / Grade C |
| Colorant in Part | Yes |
| Regrind Used to Manufacture This Part | No |
| Hazardous Goods | No |
| Product Shelf Life Non-Irradiation (months) | 36 |
| Product Shelf Life Post-Irradiation (months) | 36 |
| Animal Derived Ingredients (BSE/TSE) | Animal Derived Component Free (ADCF) |
| California Prop. 65 | SOME Substances on the California Proposition 65 list have been knowingly or intentionally added |
| California Prop. 65 List Date | 1/9/2022 07:00:00 pm |
| Conflict Minerals | Not known to contain tantalum, tin, tungsten or gold. |
| European Pharmacopoeia (EP) 3.1.X | Information Not Available |
| Human Derived Ingredients | Does NOT intentionally contain human derived ingredients |
| Latex | Does NOT intentionally contain natural latex |
| Latex in Packaging | Does NOT intentionally contain natural latex |
| Nanomaterials | Does NOT intentionally contain nanomaterials |
| Pyrogens | Pyrogen free - Tested via USP <85> |
| RoHS3 (2015/863) | Conforms to requirements of RoHS 2015/863 (RoHS3) |
| EtO Compatible | Yes |
| Gamma Compatible | Yes |
| Biocompatibility tested ISO 10993 | Yes |
| ISO 10993-X Claim Based on | Raw Material |
| USP Biocompatibility 87 | Raw materials pass USP <87> |
| USP Biocompatibility 88 | passes USP <88>, temperature not stated |
| USP Biocompatibility Claim Based On | Raw Material |
| Residual Solvents: Tested via ICH Q3C Standard | Contains ICH Q3C Class 1 or 2 Residual Solvents |
| Elemental Impurities: Tested via ICH Q3D Standard | Contains ICH Q3D Class 1, 2, 2B or 3 Elemental Impurities |
| Protein Absorption Data Available | No |
| Extractables Testing Claims | Other Report |
| Visible-Subvisible Particulate Claim | USP <788> |
| Tested via USP 661.1 | Yes |
| Integrity Tested? | Yes, routine random samples are tested |
