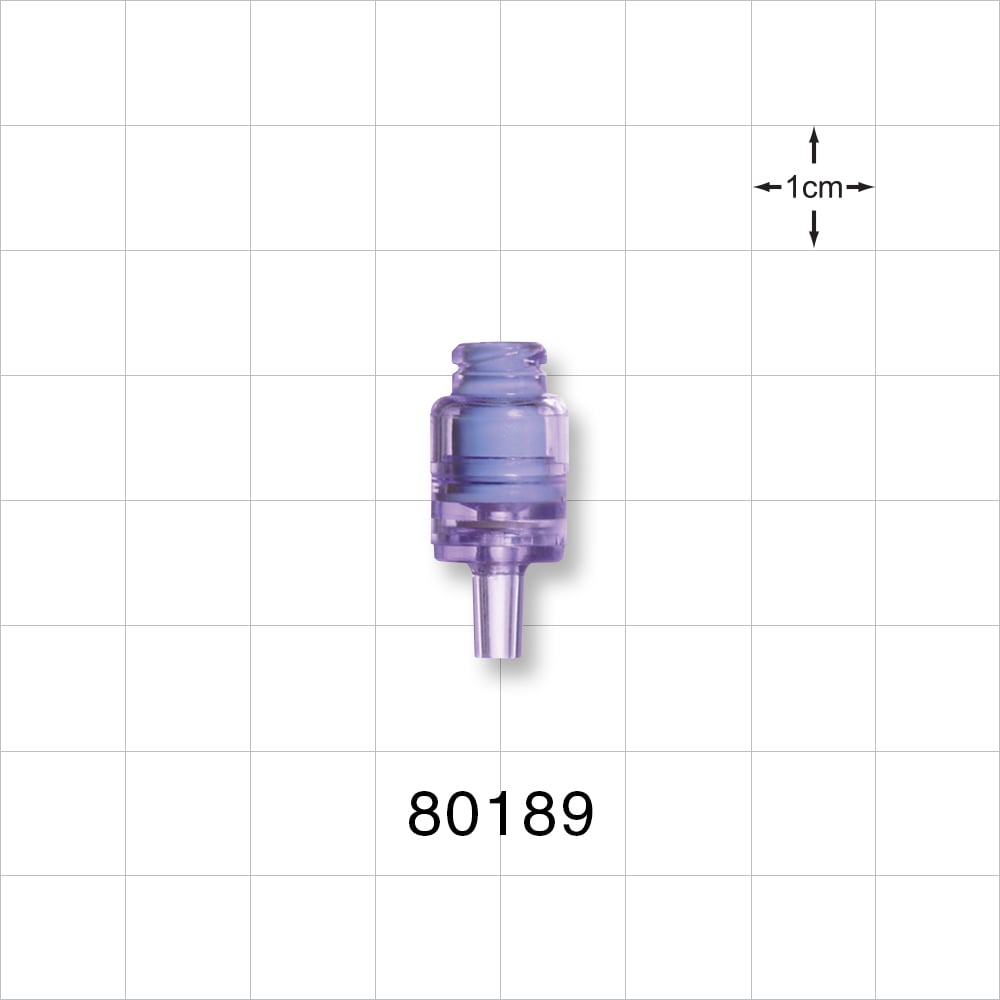

Needleless Injection Site, Swabbable, Female Luer Lock, Male Luer Slip, One Way Check Valve - - 80189
Qosina offers an extensive line of luer-activated valves in a variety of configurations that are...
Price :
Regular price
$9.95
Regular price
$9.95
Qosina offers an extensive line of luer-activated valves in a variety of configurations that are in stock and ready for immediate delivery. Ideal for use in flushing and IV applications, Qosina part #80189 is a swabbable, needleless injection site equipped with a one-way check valve and male luer slip connector. Made of tinted polycarbonate and silicone, this luer-activated valve is opened by the stem of a male luer. Once connected to the female luer lock, the valve is open, allowing for flow of fluids. Our sales team can assist you in building a custom configuration to meet your project requirements.
| Materials | PC Polyisoprene |
| CAD Model Available | No |
| Manufacturing Environment Classification | ISO Class 8 / 100,000 / Grade D |
| Manufacturing Aids - Mold Release - Lubricant used | No |
| Colorant in Part | No |
| Regrind Used to Manufacture This Part | No |
| Hazardous Goods | No |
| Product Shelf Life Non-Irradiation (months) | No shelf life indicated by the supplier |
| Conflict Minerals | Not known to contain tantalum, tin, tungsten or gold. |
| EU MDR 10.4.1 (CMR/ED) | No Substance(s) Present Above Threshold |
| EU MDR 10.4.1 (CMR/ED) Substance List | Annex VI to CLP_ATP18 - 01 December 2023 |
| Human Derived Ingredients | Does NOT intentionally contain human derived ingredients |
| Latex | Does NOT intentionally contain natural latex |
| Latex in Packaging | Does NOT intentionally contain natural latex |
| REACH SVHC | No Substance(s) Present Above Threshold |
| REACH SVHC Candidate List | 2023 January 17 (233 Substances) |
| RoHS3 (2015/863) | Conforms to requirements of RoHS 2015/863 (RoHS3) |
| EtO Compatible | Yes |
| USP Biocompatibility 87 | Information Not Available |
| USP Biocompatibility 88 | Information Not Available |
| Residual Solvents: Tested via ICH Q3C Standard | No ICH Q3C Testing Performed |
| Protein Absorption Data Available | No |
| Extractables Testing Claims | No Extractables Testing Performed |
| Bioburden USP 61 62 | No bioburden information available |
| Tested via USP 661.1 | No |
| Integrity Tested? | No |
