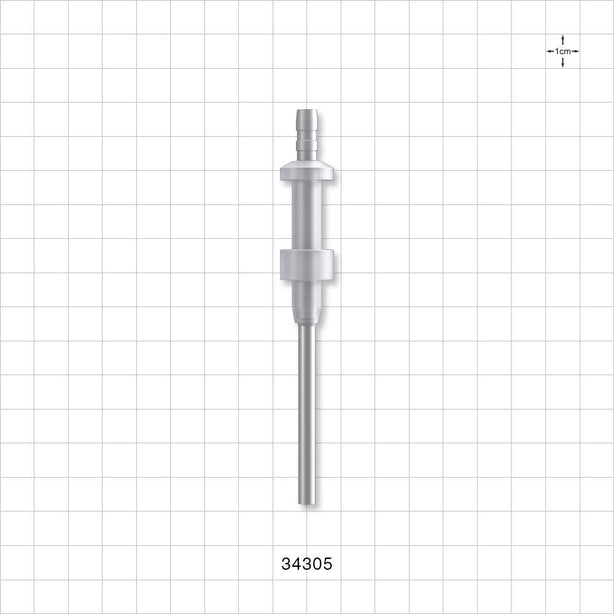

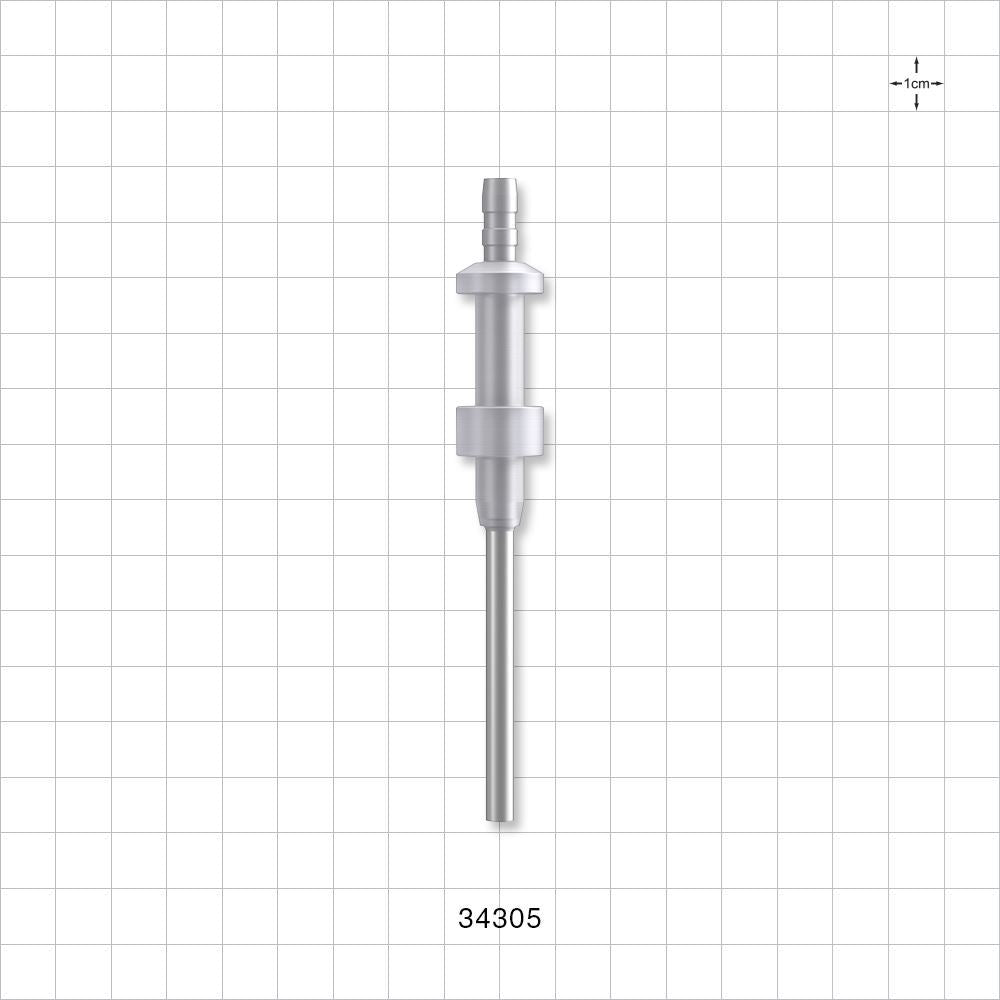

OneShot™ IMA Style Single-Use Filling Needle, Barbed - 4 mm Needle ID; Fits 3/16 inch ID Tubing (0.188 inch, 4.76 mm) - 34305
OneShot™ single-use filling needles boost production by reducing filler line downtime and eliminate the risk...
Price :
Regular price
$253.95
Regular price
$253.95
OneShot™ single-use filling needles boost production by reducing filler line downtime and eliminate the risk of cross contamination as well as the need for costly cleaning and validation. Featuring a polycarbonate hub and 316L stainless steel needle, they are available in a variety of styles as OEM replacements for the most popular fill-finish brands.
| Technical Detail | 4 mm Needle ID; Fits 3/16 inch ID Tubing (0.188 inch, 4.76 mm) |
| Materials | PC SS |
| CAD Model Available | No |
| Manufacturing Environment Classification | ISO Class 7 / 10,000 / Grade C |
| Manufacturing Aids - Mold Release - Lubricant used | No |
| Colorant in Part | No |
| Regrind Used to Manufacture This Part | No |
| Hazardous Goods | No |
| Product Shelf Life Non-Irradiation (months) | 60 |
| California Prop. 65 | NO Substances on the California Proposition 65 list have been knowingly or intentionally added |
| California Prop. 65 List Date | 12/29/2023 12:00:00 am |
| Conflict Minerals | Not known to contain tantalum, tin, tungsten or gold. |
| EU MDR 10.4.1 (CMR/ED) | No Substance(s) Present Above Threshold |
| EU MDR 10.4.1 (CMR/ED) Substance List | Annex VI to CLP_ATP20 - 01 February 2025 |
| Human Derived Ingredients | Does NOT intentionally contain human derived ingredients |
| Latex | Does NOT intentionally contain natural latex |
| Latex in Packaging | Does NOT intentionally contain natural latex |
| REACH SVHC | No Substance(s) Present Above Threshold |
| REACH SVHC Candidate List | 2024 January 23 (240 Substances) |
| RoHS3 (2015/863) | Conforms to requirements of RoHS 2015/863 (RoHS3) |
| Gamma Compatible | Yes |
| Extractables Testing Claims | No Extractables Testing Performed |
