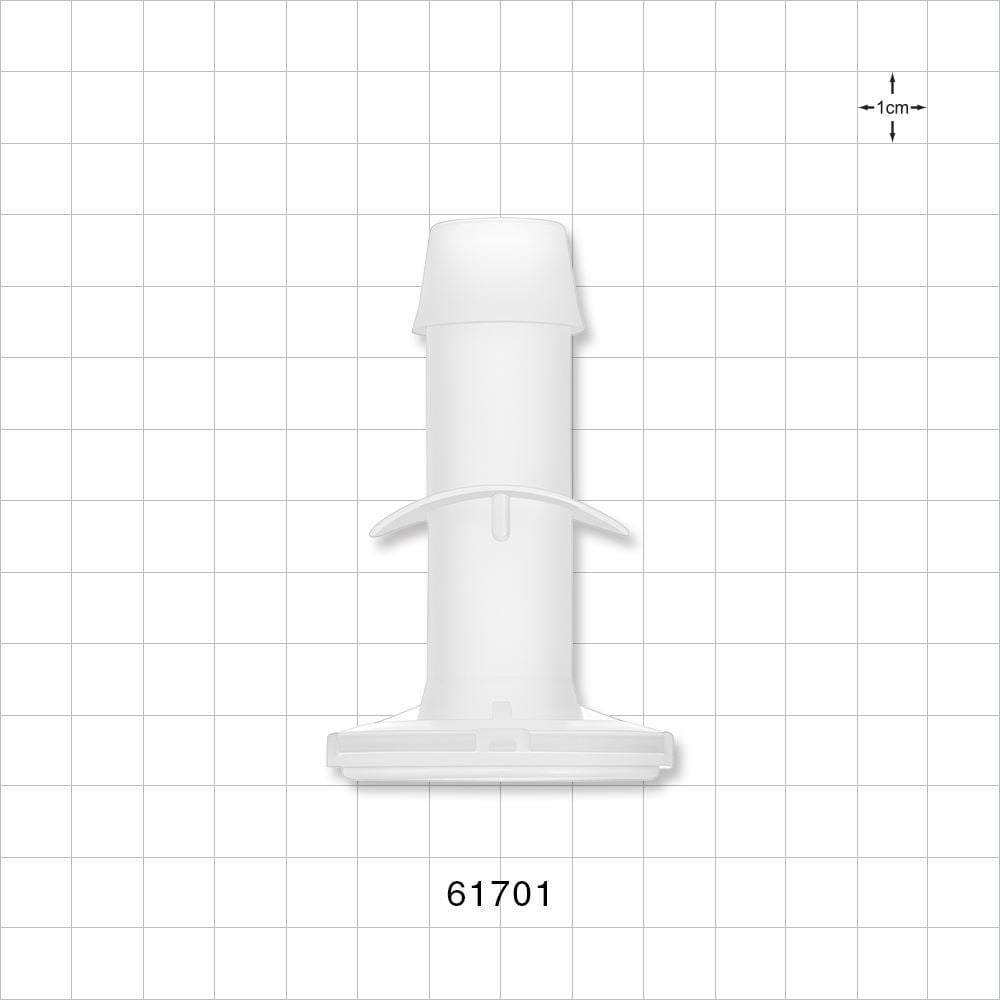

Sanitary Flange, Barbed, Natural, Pre-Attached Gasket - 1 inch/1.5 inch Standard; Fits 3/4 inch ID Tubing (0.75 inch, 19.05 mm) - 61701
Technical Detail 1 inch/1.5 inch Standard; Fits 3/4 inch ID Tubing (0.75 inch, 19.05 mm)...
Price :
Regular price
$31.95
Regular price
$31.95
| Technical Detail | 1 inch/1.5 inch Standard; Fits 3/4 inch ID Tubing (0.75 inch, 19.05 mm) |
| Materials | PP Silicone |
| CAD Model Available | No |
| Manufacturing Environment Classification | ISO Class 7 / 10,000 / Grade C |
| Manufacturing Aids - Mold Release - Lubricant used | No |
| Colorant in Part | No |
| Regrind Used to Manufacture This Part | No |
| Hazardous Goods | No |
| Animal Derived Ingredients (BSE/TSE) | Animal Derived Component Free (ADCF) |
| California Prop. 65 | NO Substances on the California Proposition 65 list have been knowingly or intentionally added |
| Conflict Minerals | Not known to contain tantalum, tin, tungsten or gold. |
| EU MDR 10.4.1 (CMR/ED) | Information Not Available |
| European Pharmacopoeia (EP) 3.1.X | Information Not Available |
| Latex | Does NOT intentionally contain natural latex |
| Latex in Packaging | Does NOT intentionally contain natural latex |
| REACH SVHC | No Substance(s) Present Above Threshold |
| REACH SVHC Candidate List | 2024 January 23 (240 Substances) |
| RoHS3 (2015/863) | Conforms to requirements of RoHS 2015/863 (RoHS3) |
| Gamma Compatible | Yes |
| USP Biocompatibility 87 | Raw materials pass USP <87> |
| USP Biocompatibility 88 | passes USP <88>, temperature not stated |
| USP Biocompatibility Claim Based On | Raw Material |
| Residual Solvents: Tested via ICH Q3C Standard | No ICH Q3C Testing Performed |
| Elemental Impurities: Tested via ICH Q3D Standard | No ICH Q3D Testing Performed |
| Protein Absorption Data Available | No |
| Extractables Testing Claims | No Extractables Testing Performed |
| Bioburden USP 61 62 | No bioburden information available |
| Tested via USP 661.1 | Yes |
| Integrity Tested? | No |
