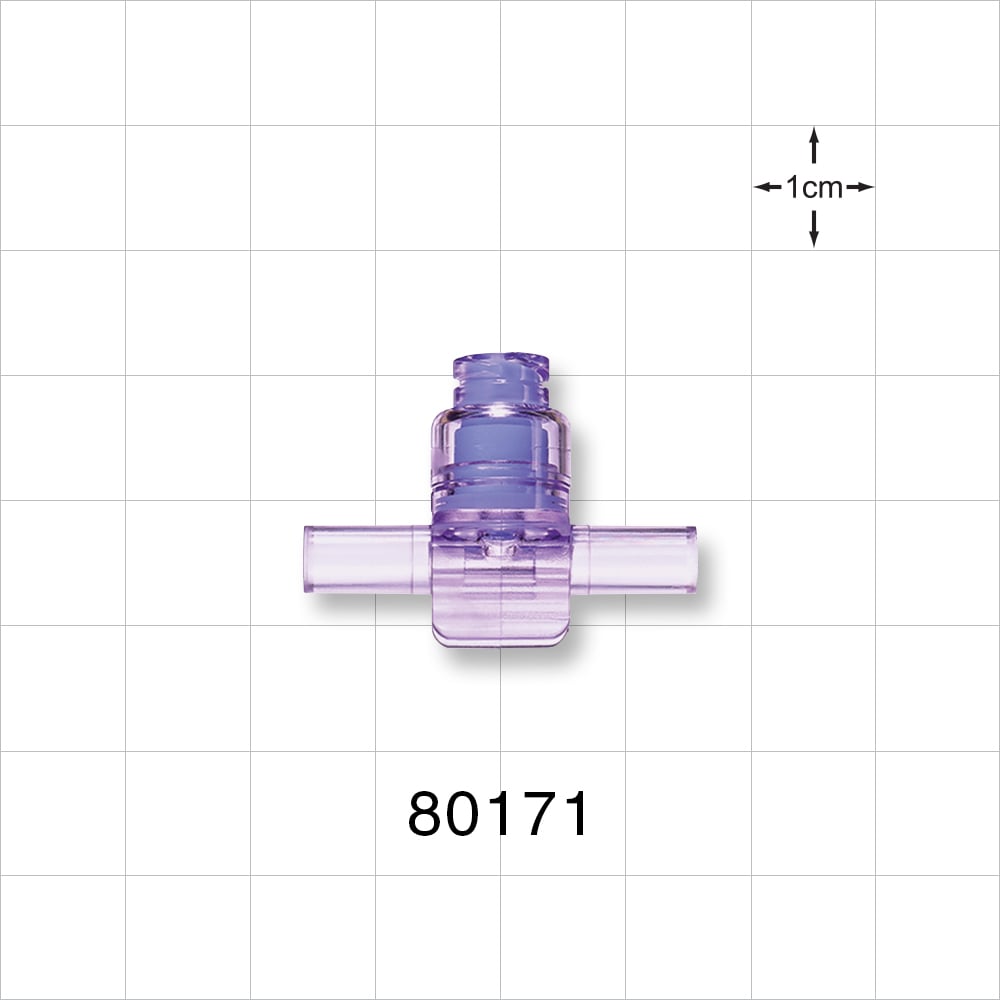

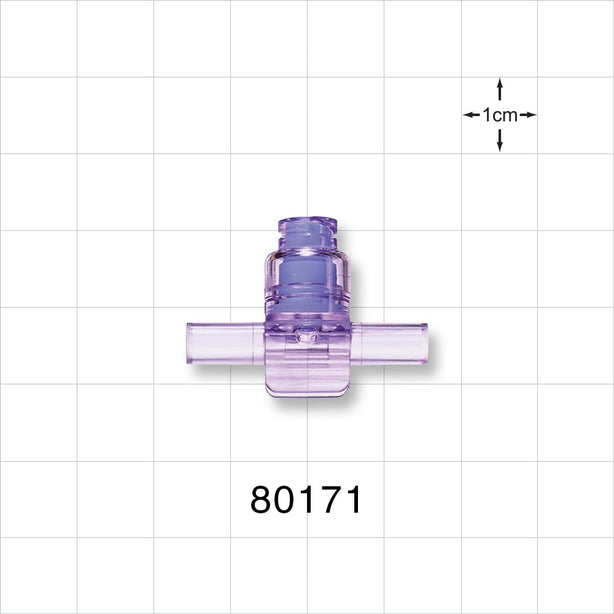

T Connector, Needleless Injection Site, Swabbable, Female Luer Lock, Tubing Ports - 0.157 inch ID (3.99 mm) - 80171
Qosina offers an extensive line of luer-activated valves in a variety of configurations that are...
Price :
Regular price
$3.95
Regular price
$3.95
Qosina offers an extensive line of luer-activated valves in a variety of configurations that are in stock and ready for immediate delivery. Ideal for use in flushing, sampling and IV applications, Qosina part #80171 is a T connector that features a 0.157 inch ID with a needleless injection site. With a tinted polycarbonate housing and silicone valve, the swabbable valve is opened by the stem of a male luer. Once connected, the valve is open, allowing for flow of fluids. Our sales team can assist you in building a custom configuration to meet your project requirements.
| Technical Detail | 0.157 inch ID (3.99 mm) |
| Materials | PC Silicone Colorant |
| CAD Model Available | Yes |
| Manufacturing Environment Classification | Controlled but not formally classified |
| Manufacturing Aids - Mold Release - Lubricant used | No |
| Colorant in Part | Yes |
| Regrind Used to Manufacture This Part | No |
| Hazardous Goods | No |
| Product Shelf Life Non-Irradiation (months) | 36 |
| Animal Derived Ingredients (BSE/TSE) | Animal Derived Component Free (ADCF) |
| California Prop. 65 | SOME Substances on the California Proposition 65 list have been knowingly or intentionally added |
| California Prop. 65 List Date | 12/5/2025 12:00:00 am |
| Conflict Minerals | Not known to contain tantalum, tin, tungsten or gold. |
| EU MDR 10.4.1 (CMR/ED) | No Substance(s) Present Above Threshold |
| EU MDR 10.4.1 (CMR/ED) Substance List | Annex VI to CLP_ATP18 - 01 December 2023 |
| European Pharmacopoeia (EP) 3.1.X | Information Not Available |
| Human Derived Ingredients | Does NOT intentionally contain human derived ingredients |
| Latex | Does NOT intentionally contain natural latex |
| Latex in Packaging | Does NOT intentionally contain natural latex |
| Nanomaterials | Does NOT intentionally contain nanomaterials |
| PFAS | Does NOT intentionally contain PFAS |
| Pyrogens | Pyrogen free - Tested via USP <151>/<161> |
| REACH SVHC | No Substance(s) Present Above Threshold |
| REACH SVHC Candidate List | 2025 November 05 (251 Substances) |
| RoHS3 (2015/863) | Conforms to requirements of RoHS 2015/863 (RoHS3) |
| EtO Compatible | Yes |
| Gamma Compatible | Yes |
| Biocompatibility tested ISO 10993 | Yes |
| ISO 10993-X Claim Based on | Finished Component |
| USP Biocompatibility 87 | Information Not Available |
| USP Biocompatibility 88 | passes USP <88>, temperature not stated |
| USP Biocompatibility Claim Based On | Raw Material |
| Residual Solvents: Tested via ICH Q3C Standard | No ICH Q3C Testing Performed |
| Elemental Impurities: Tested via ICH Q3D Standard | No ICH Q3D Testing Performed |
| Protein Absorption Data Available | No |
| Extractables Testing Claims | No Extractables Testing Performed |
| Visible-Subvisible Particulate Claim | Information Not Available |
| Bioburden USP 61 62 | No bioburden information available |
| Tested via USP 661.1 | No |
| Integrity Tested? | No |
