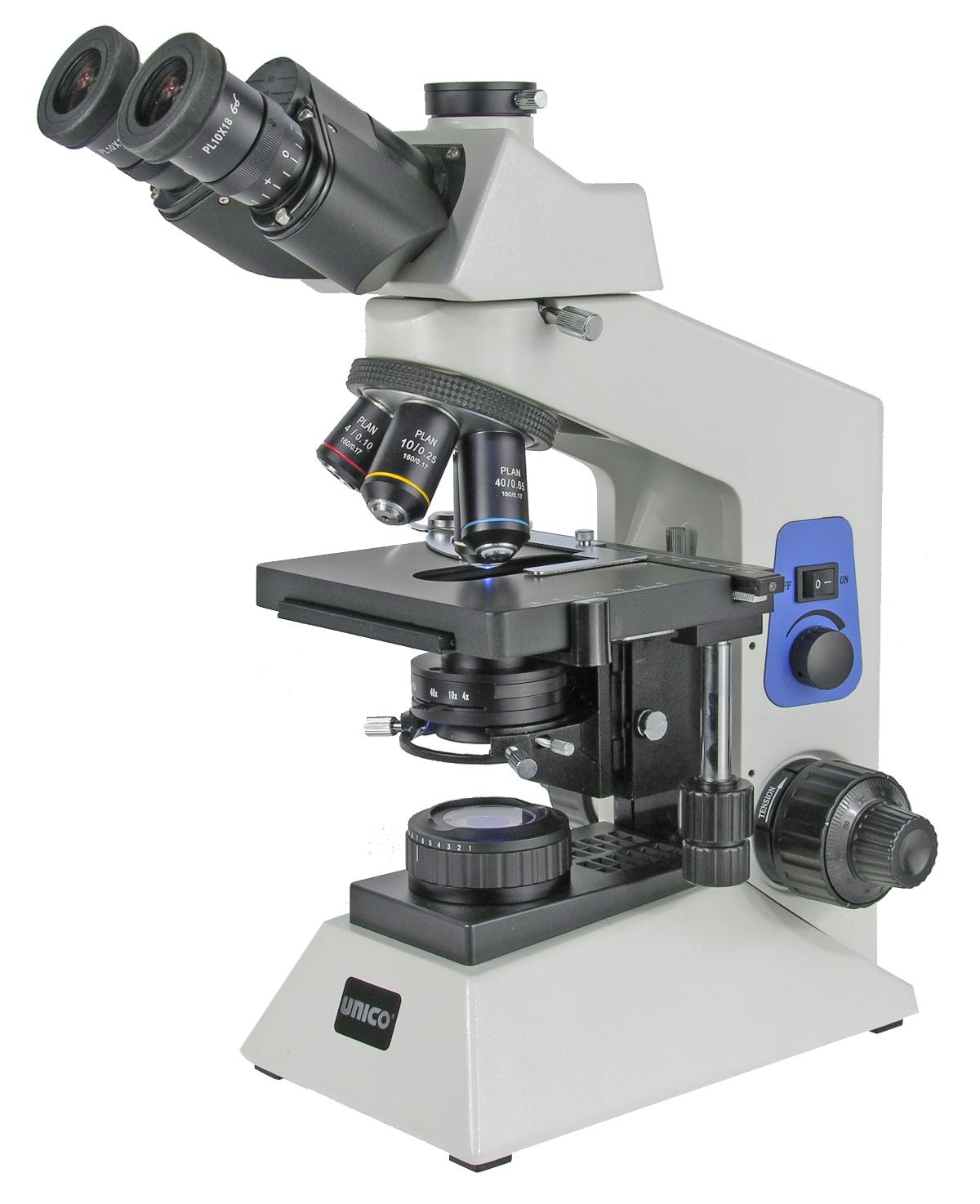

Unico G504 Series Binocular LED Microscope G504T, Adv Tri, 4/10/40/100, Pl - UPNG504T

Unico G504 Series Binocular LED Microscope G504T, Adv Tri, 4/10/40/100, Pl

Choose the Unico G504 Series Binocular LED Microscope G504T, Adv Tri, 4/10/40/100, Pl where consistent quality and simple reordering matter. G504/T Plan Achromat Microscope. Specifications include latex-free materials.

Key Features

• G504: Seidentopf Binocular Head (Inclined 30°).
• G504T: Seidentopf Camera-Ready Trinocular Head (Inclined 30°).
• Nosepiece: 5 position nosepiece provides flexibility.
• Eyepiece: Paired wide field 10X (FN 18 mm) high point eyepieces with dual diopter; A pointer or reticule can be added.
• Objectives: All objectives are parfocal, parecentered, and color-coded.
• Plan Achromat Objectives: 4X, 10X, 40X, and 100X (oil).
• Focus: The low position coaxial coarse and fine focusing system designed to lessen user fatigue; The coarse focus tension control allows to increase or decrease the focusing tension; The safety stop prevents damage to objectives and specimensl; The fine focusing is graduated at 0.002 mm.
• Stand: Ruggedly constructed all metal stand and broad low profile base.
• Stage: Heavy duty, built-in graduated mechanical stage with low position coaxial X-Y controls.
• Ball bearing movement (with dovetail mechanism) allows for smooth, precise adjustments; Stage size is 180 mm x 150 mm and the range of X-Y stage movement is 80 mm x 50 mm.
• Condenser: Abbe condenser N.A. 1.25 with graduated iris diaphragm is focusable and centerable.
• Illuminator: Built-in high-intensity LED illuminator with field diaphragm provides Koehler type illumination for clear, sharp images.
• The brightness intensity control (rheostat) is conveniently located and provides steady even illumination at all levels.
• Power Input: 90-240 V & Fuse rating is 250 V and 1.5 A.
