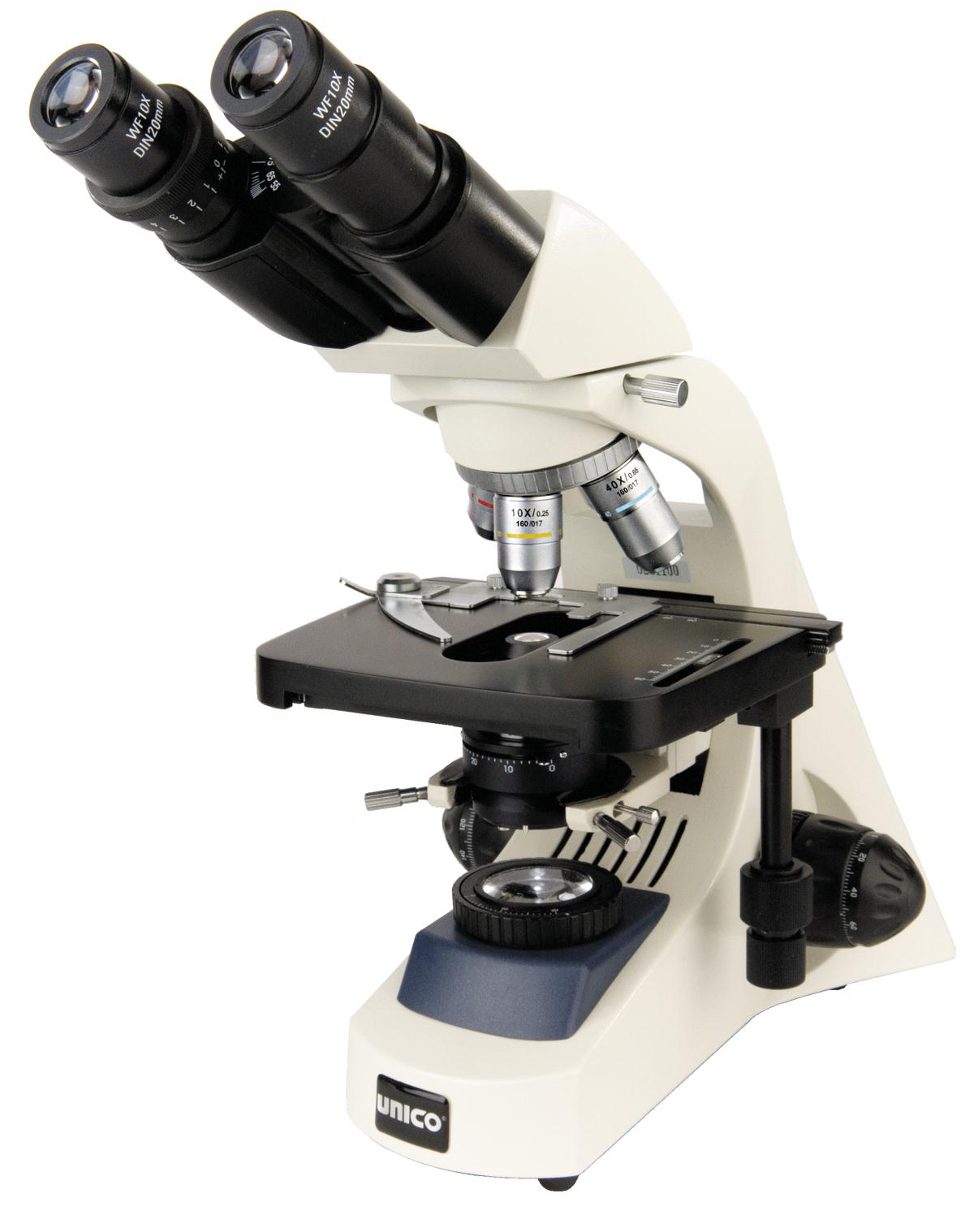

Unico Medical / Research by Microscope IP730, Binoc, 4/10/40/100, Halog - UPNIP730

Unico Medical / Research by Microscope IP730, Binoc, 4/10/40/100, Halog

The Unico Medical / Research by Microscope IP730, Binoc, 4/10/40/100, Halog covers everyday requirements across clinical and facility settings. Head. Specifications include latex-free materials.

Key Features

• Seidentopf binocular or trinocular head with a 80/20 beam splitter.
• Nosepiece.
• 4-hole reverse nosepiece provides the user with easier slide insertion and manipulation.
• The precision ball bearings and internal stop assure operational ease and durability.
• Eyepiece.
• High eyepoint widefield 10X/20 mm or 15X eyepieces.
• Focus.
• The low position coaxial coarse and fine focusing system designed to lessen user fatigue.
• The coarse focus tension control allows to increase or decrease the focusing tension.
• The fine focusing is graduated at 0.002 mm.
• Stage.
• Large heavy duty, built-in mechanical stage with low coaxial controls provides larger (180mm x 150mm) platform with X-Y travel of 76 mm x 50 mm graduated in 0.1 mm assures flexibility.
• Condenser.
• Focusable and centerable Abbe condenser NA 1.25 with graduated Iris diaphragm and filter holder.
• Illuminator.
• The built-in illuminator with field diaphragm provides Koehler type illumination.
• The brightness intensity control provides steady even illumination at all levels.
